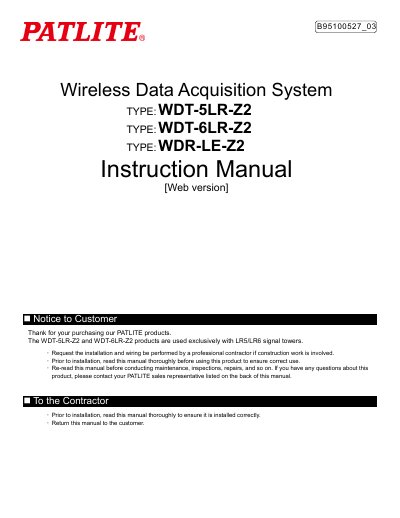

PATLITE WDT-5LR-Z2/WDT-6LR-Z2/WDR-LE-Z2 Wireless Data Acquisition System Instruction Manual
This document is the instruction manual for the PATLITE Wireless Data Acquisition System, specifically covering the WDT-5LR-Z2, WDT-6LR-Z2, and WDR-LE-Z2 models. The system is designed to be used exclusively with LR5 and LR6 signal towers to transmit changes in operation status via wireless communication to a receiver for data collection.
The manual details the safety precautions, installation procedures, equipment settings, and operational steps for both the transmitter (WDT) and receiver (WDR) units. It includes specific guidance on the installation environment, such as ensuring line of sight and managing distance between devices, as well as instructions for wiring, DIP switch operations, and initialization.
All PATLITE WDR-LE-Z2 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What signal towers are compatible with this system?
The WDT-5LR-Z2 and WDT-6LR-Z2 products are used exclusively with LR5/LR6 signal towers.
From: PATLITE WDT-5LR-Z2/WDT-6LR-Z2/WDR-LE-Z2 Wireless Data Acquisition System Instruction Manual
Who should perform the installation?
Installation and wiring should be performed by a professional contractor if construction work is involved.
From: PATLITE WDT-5LR-Z2/WDT-6LR-Z2/WDR-LE-Z2 Wireless Data Acquisition System Instruction Manual
Who should perform the installation and wiring?
Installation and wiring involving construction work must be performed by a professional contractor.
From: PATLITE WDT-4LR-Z2/5LR-Z2/6LR-Z2/WDR-LE-Z2 Wireless Data Acquisition System Instruction Manual
Can this product be used near implanted cardiac pacemakers?
No, it should not be used in the vicinity of implanted cardiac pacemakers or other medical equipment.
From: PATLITE WDT-4LR-Z2/5LR-Z2/6LR-Z2/WDR-LE-Z2 Wireless Data Acquisition System Instruction Manual
