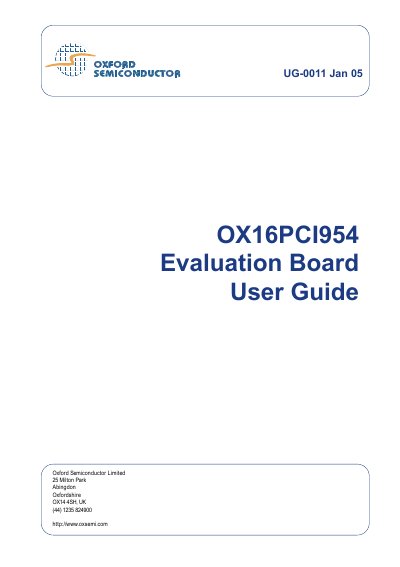

Oxford Semiconductor OX16PCI954 Evaluation Board User Manual
This manual describes the OX16PCI954 evaluation board, an adaptable tool that includes four OX16C954 UARTs, an 8‑bit local bus, parallel port support, and a serial EEPROM socket. It outlines the board's features, such as configurable jumpers, connector pin assignments, and optional crystal or TTL oscillator configurations.
The guide also covers board configuration, driver installation for Windows and Linux, customizing vendor and subsystem IDs, and a comprehensive troubleshooting section addressing hardware issues, driver problems, and PCI compliance details.
Oxford OX16PCI954 specifications
| Order code | EV-OX16PCI954 |
|---|---|
| UART count and interfaces | 4 OX16C954 UARTs (2×RS232, 2×RS422) |
| Local bus function | 8‑bit bus to drive external OX16C954 UART |
| Parallel port header | Standard 25‑way D‑type header |
| EEPROM socket | Serial EEPROM socket for configurability |
| Oscillator options | Internal crystal oscillator or external TTL oscillator socket |
| PCI compliance | PCI spec v2.2, PCI Power Management spec v1.0 |
Source: Oxford Semiconductor OX16PCI954 Evaluation Board User Manual
All Oxford OX16PCI954 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the order code for the OX16PCI954 evaluation board?
The order code is EV-OX16PCI954.
From: Oxford Semiconductor OX16PCI954 Evaluation Board User Manual
How many UARTs does the board provide and what interfaces are available?
It provides four OX16C954 UARTs, with two RS232 and two RS422 interfaces.
From: Oxford Semiconductor OX16PCI954 Evaluation Board User Manual
What is the maximum baud rate of the OX16PCI954?
The device supports up to 15 Mbps in asynchronous mode and up to 60 Mbps when using an external 1× clock.
How many UART channels does the OX16PCI954 provide?
It provides four high‑performance 16C950 UART channels.
