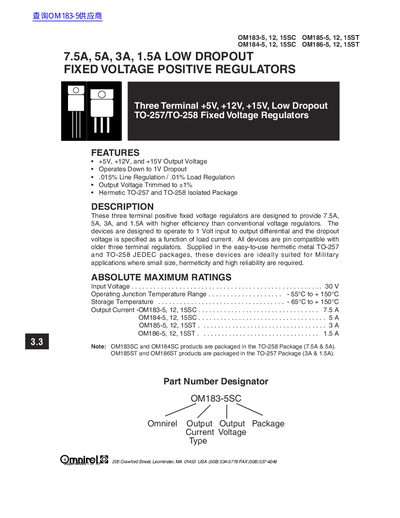

OmnIrel OM183-5 12 5SC OM184-5 12 5SC OM185-5 12 5SC OM186-5 12 5SC handbook(1)(1)
This document describes the OM183, OM184, OM185, and OM186 series of three-terminal positive fixed voltage regulators. These devices provide output voltages of +5V, +12V, and +15V with currents ranging from 1.5A to 7.5A. They are designed for high efficiency with a low dropout voltage as small as 1V.
Read onlineOmnirel OM183-5 specifications
| Output Voltage Options | +5V, +12V, +15V |
|---|---|
| Dropout Voltage | Down to 1V |
| Line Regulation (5V) | 0.015% |
| Load Regulation | 0.01% |
| Operating Junction Temperature Range | -55°C to +150°C |
| Package Types | TO-257/TO-258 |
Source: OmnIrel OM183-5 12 5SC OM184-5 12 5SC OM185-5 12 5SC OM186-5 12 5SC handbook(1)(1)
All Omnirel OM183-5 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the dropout voltage of these regulators?
The devices are designed to operate with a 1 Volt input to output differential.
From: OmnIrel OM183-5 12 5SC OM184-5 12 5SC OM185-5 12 5SC OM186-5 12 5SC handbook(1)(1)
Are these regulators pin compatible with older models?
Yes, all devices in this family are pin compatible with older three terminal regulators.
From: OmnIrel OM183-5 12 5SC OM184-5 12 5SC OM185-5 12 5SC OM186-5 12 5SC handbook(1)(1)
What is the dropout voltage of the OM183-5 regulator?
The device operates down to a 1V input to output differential.
From: OmnIrel OM183-5 12 5SC OM184-5 12 5SC OM185-5 12 5SC OM186-5 12 5SC handbook(1)
