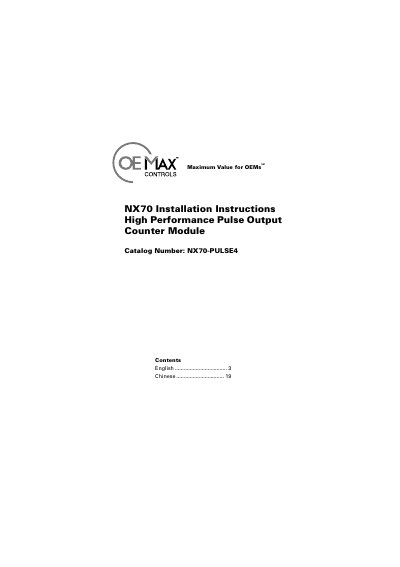

OE Max Controls NX70-PULSE4 Installation Guide
The NX70-PULSE4 is a pulse output and high‑speed counter module designed for OEM integration. It provides 32 input and 32 output points, four counter channels, and supports pulse and PWM output functions.
This guide covers safety instructions, installation environment, mounting, wiring, I/O specifications, and part functions, helping users correctly install and configure the module for reliable operation.
OE NX70 specifications
| Operating temperature | 0 °C to +55 °C |
|---|---|
| Storage temperature | -25 °C to +70 °C |
| Operating humidity | 30 % to 85 % RH (non‑condensing) |
| Withstand voltage | 500 V for 1 min between external terminal and frame ground |
| Insulation resistance | ≥ 100 MΩ at 500 V |
| Vibration immunity | 10 Hz–55 Hz, 0.75 mm double amplitude |
| Shock immunity | ≥ 98 m/s², 4 shocks per axis |
| Noise immunity | 1500 Vp‑p, 50 ns‑1 µs pulse width |
| I/O points | 32 inputs, 32 outputs |
| Internal current consumption | ≤ 500 mA @5 VDC |
| Weight | ≈ 130 g |
| Counting range | 32‑bit signed (-2,147,483,648 to +2,147,483,647) |
| Maximum counting speed | 200 kHz |
| Input modes | Direction control, individual input, phase input |
Source: Schneider NX70-HSC4 High Speed Counter Installation Guide
All OE NX70 documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What is the operating temperature range of the module?
The unit operates from 0 °C up to +55 °C.
From: Schneider NX70-HSC4 High Speed Counter Installation Guide
How many I/O points does the NX70‑HSC4 provide?
It provides 32 input points and 32 output points.
From: Schneider NX70-HSC4 High Speed Counter Installation Guide
