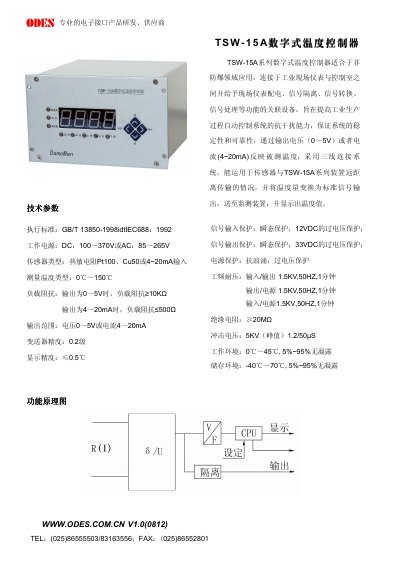

ODES TSW-15A Digital Temperature Controller User Manual
This manual describes the technical parameters, wiring, and operation of the ODES TSW-15A digital temperature controller. It includes power supply requirements, sensor options, measurement range, output types, and protection features.
The document also explains how to set temperature limits, configure alarms, and order the device, with diagrams of the front panel, backplane terminals, and mounting dimensions. This manual is written in Chinese.
ODES TSW-15A specifications
| Working Power Supply | DC 100‑370 V or AC 85‑265 V |
|---|---|
| Sensor Types | Pt100, Cu50, 4‑20 mA input |
| Measurement Temperature Range | 0 °C ~ 150 °C |
| Output Range | Voltage 0‑5 V or Current 4‑20 mA |
| Display Accuracy | ≤ 0.5 °C |
| Load Impedance (Voltage Output) | ≥ 10 kΩ |
| Load Impedance (Current Output) | ≤ 500 Ω |
| Insulation Resistance | ≥ 20 MΩ |
Source: ODES TSW-15A Digital Temperature Controller User Manual
All ODES TSW-15A documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What sensor types can be used with the TSW-15A controller?
The controller accepts Pt100, Cu50 thermistors, or a 4‑20 mA current input.
From: ODES TSW-15A Digital Temperature Controller User Manual
What are the power supply protection features?
The controller includes transient protection for signal input (12 VDC), signal output (33 VDC), and surge/over‑voltage protection for the power supply.
From: ODES TSW-15A Digital Temperature Controller User Manual
How is the fan start temperature configured?
In the setting mode, when the Set light is on, use the +/‑ keys to adjust the fan start value in 0.5 °C steps and confirm with the Confirm key.
