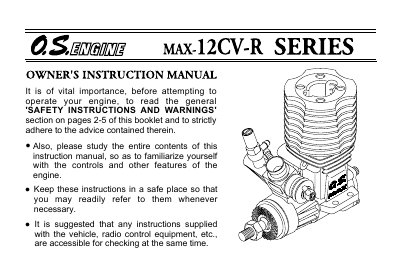

O.S. MAX-12CV-R Series Engine User Manual
This instruction manual covers the safe operation and maintenance of O.S. MAX-12CV-R and MAX-12CV-RX high-performance engines designed for 1/10 class R/C racing cars. It includes detailed sections on safety warnings, basic engine parts identification, and installation procedures for the engine and carburettor.
Read onlineO.S. Engines MAX-12CV specifications
| Intended Application | 1/10 class R/C racing cars |
|---|---|
| Engine Type | Glowplug-ignition |
| Carburettor Options | Type 10C or Type 10E-R |
All O.S. Engines MAX-12CV documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Can the recoil starter of the 12CV-RX be disassembled?
No, you should not attempt to disassemble the recoil starter of the 12CV-RX because the very strong spring inside can be suddenly ejected, causing danger.
How often should the upper air cleaner element be replaced?
It is advisable to replace the upper filter element with a new one after not more than one hour of running time.
What is the maximum length to which the starter cord can be extended?
The operating handle should not be pulled out more than 45cm (18 inches) to prevent damage.
From: O.S. MAX-12CV and MAX-12CV-X Series Owner's Instruction Manual
How far back should onlookers, especially small children, stand when preparing the model for running?
Keep all onlookers well back at least 20 feet or 6 meters while preparing your model.
From: O.S. MAX-12CV and MAX-12CV-X Series Owner's Instruction Manual
