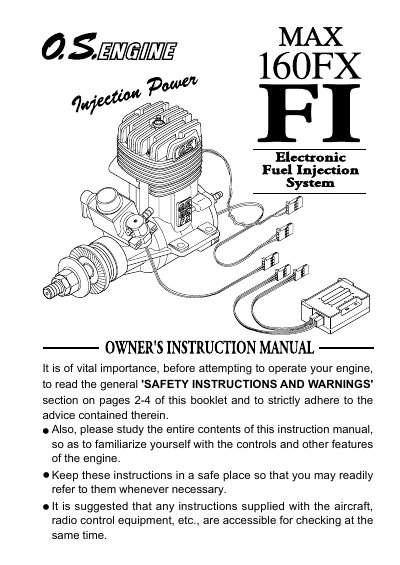

O.S. 160FX-FI Fuel Injection Engine User Manual
The document is a user guide for the O.S. 160FX-FI, a MAX-160FX-FI internal combustion engine equipped with a revolutionary fuel supply system jointly developed by Futaba and O.S. Engines. The system utilizes an EC-2 electronic control unit to detect engine speed via throttle signals and inject fuel accurately based on the required amount for that specific speed.
The manual covers essential topics including safety instructions regarding propeller handling, fuel storage, and exhaust fumes; installation procedures for the air valve and linkage; starting and stopping techniques using an electric starter; flight adjustments; glow plug care; and troubleshooting. It also includes a parts list and exploded views.
O.S. Engines 160FX specifications
| Recommended Fuel Tank Capacity | 450-550cc |
|---|---|
| Flight Time Duration | 10-12 minute flights |
| Recommended Glow Plug Numbers | Nos. 8, A5 and A3 |
Source: O.S. 160FX Engine User Manual
All O.S. Engines 160FX documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What type of engine is the O.S. 160FX designed for?
This engine was designed for model aircraft.
Is it safe to operate the engine in an enclosed space?
No, you should never operate your engine in an enclosed space because model engines exhaust deadly carbon-monoxide.
What is the primary function of the EC-2 system?
It detects engine speed with a sensor based on throttle signals and determines the fuel injection volume required for that speed.
What type of starter is recommended for this engine?
An electric starter is strongly recommended and required for safe operation.
