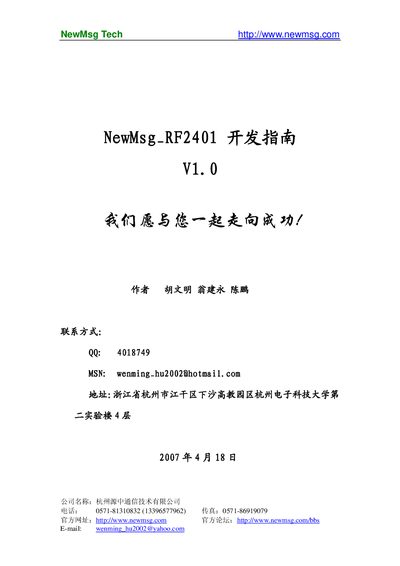

NewMsg RF2401 Reference Manual
User Manual 23 pages · 481 KB · ZH
The RF2401 is a compact 2.4 GHz ISM‑band transceiver module designed for low‑power wireless communication. It supports a maximum data rate of 1 Mbps using GFSK modulation and operates from a 1.9 V to 3.6 V supply, drawing only 1 µA in standby.
This manual details the module’s mechanical dimensions, electrical characteristics, pin assignments, and the four operating modes (ShockBurst, TX, RX, and Power‑down). It also explains configuration procedures, timing diagrams, and CRC handling for reliable data transmission. This manual is written in Chinese.
All NEWMSG RF2401 documents by type
User Manual 1
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
