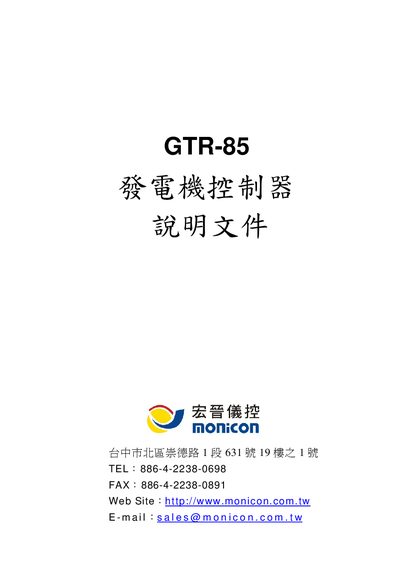

Monicon GTR-85 Generator Controller User Manual
This manual provides a complete guide to the GTR-85 generator controller, covering panel and back‑panel descriptions, mechanical dimensions, and detailed specifications. It also includes wiring diagrams for controller, ATS, and remote connections, as well as communication protocol details.
The document further describes software installation and operation, parameter‑setting screens, and a comprehensive fault‑troubleshooting section, helping users install, configure, and maintain the controller safely and efficiently. This manual is written in Chinese.
Monicon GTR-85 specifications
| DC input voltage | 8–36 VDC |
|---|---|
| Maximum power consumption | 10 W |
| Voltage measurement range | 10–300 V AC (±1.5 %) |
| Current measurement range | up to 5 A (±1.5 %) |
| Frequency measurement range | 0–80 Hz (±0.05 %) |
| Operating temperature range | -10 °C to 60 °C |
| Physical dimensions (W × H × D) | 144 mm × 144 mm × 74 mm |
| Weight | 1.4 kg |
Source: Hongjin Yikong GTR-85 Generator Controller User Manual
All Monicon GTR-85 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I reset a fault on the GTR‑85 controller?
Press the Reset switch once to turn on the LCD backlight and silence the buzzer; press it a second time to clear the fault indicator lights.
How do I clear fault indicators on the controller?
Press the Reset switch once to turn on the LCD backlight and silence the buzzer; press it a second time to clear the fault lights.
From: Hongjin Yikong GTR-85 Generator Controller User Manual
What does a red LED on the power indicator mean?
A red LED indicates that the DC power polarity is reversed.
From: Hongjin Yikong GTR-85 Generator Controller User Manual
