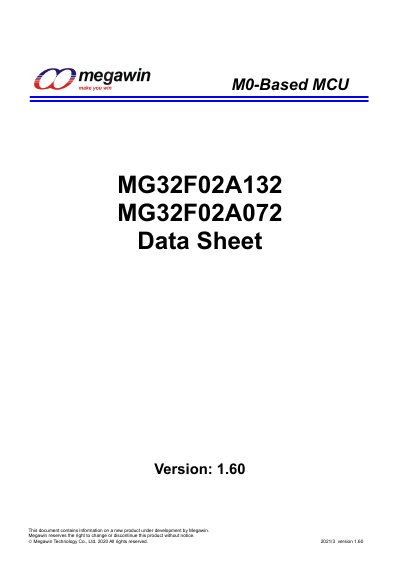

Megawin MG32F02A132/072 Microcontroller Unit Data Sheet
The document provides technical information for the Megawin MG32F02A132/072, an M0-based microcontroller developed by Megawin Technology Co., Ltd. It covers core specifications including the ARM Cortex-M0 CPU operating up to 48MHz and built-in peripherals such as NVIC, timers, and DMA controllers.
Read onlineMegawin MG32F02A132 specifications
| CPU Core | ARM 32-bit Cortex-M0 CPU |
|---|---|
| Operation Frequency | up to 48MHz |
| Flash Memory Size | max. 132K bytes |
| SRAM Size | 16K bytes |
| ADC Resolution | 12-bit SAR ADC with 400Ksps |
| UART Baud Rate | up to 6 Mbit/s |
Source: Megawin MG32F02A132/072 Microcontroller Unit Data Sheet
All Megawin MG32F02A132 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operation frequency of this microcontroller?
The device supports an operation frequency up to 48MHz.
From: Megawin MG32F02A132/072 Microcontroller Unit Data Sheet
How much flash memory is built into the MG32F02A132/072?
The microcontroller includes a maximum of 132K bytes of embedded flash memory.
From: Megawin MG32F02A132/072 Microcontroller Unit Data Sheet
What is the maximum operating frequency of this MCU?
The maximum operating frequency for the MG32F02A series is 48MHz.
Does this microcontroller support in-circuit programming (ICP)?
Yes, it supports ICP via the SWD interface to update ISP boot code.
