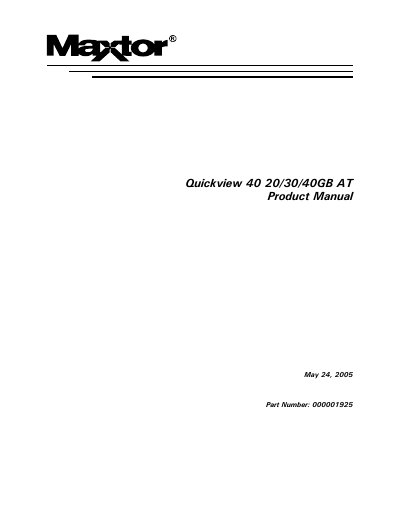

Maxtor Quickview 40 20/30/40GB AT Product Manual
The document is a product manual for the Maxtor Quickview 40 series of hard disk drives with capacities of 20GB, 30GB, and 40GB. It is intended primarily for OEM engineers and systems integrators who need technical details on installation and usage rather than end-user operating instructions.
The guide covers product descriptions, hardware requirements, detailed specifications including performance and physical dimensions, and comprehensive installation procedures. Key topics include unpacking instructions, jumper configurations (Cable Select, Drive Select), ATA bus adapter setup, mounting guidelines, and system startup operations.
Maxtor 40GB AT specifications
| Capacity | 20/30/40GB |
|---|---|
| Interface | ATA |
| Part Number | 000001876 |
Source: Maxtor DiamondMax Plus 8 20/30/40GB AT Product Manual
All Maxtor 40GB AT documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What precautions must be taken before unpacking or handling a drive?
You must take all proper electrostatic discharge (ESD) precautions, including personnel and equipment grounding, and allow the drive to reach room temperature before removing it from its packing material.
How should a drive be stored if it is not immediately installed in a chassis?
The drive must be stored on a padded, grounded, antistatic surface.
Who is the intended audience for this manual?
This manual provides technical information for OEM engineers and systems integrators regarding the installation and use of Maxtor hard drives.
Where should drive repair be performed?
Drive repair should be performed only at an authorized repair center.
