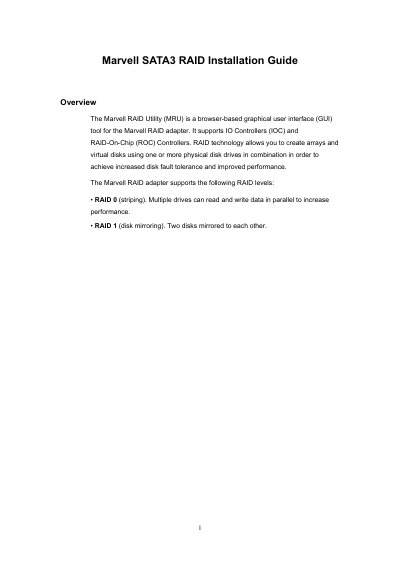

Marvell SATA3 RAID Installation Guide
This guide explains how to install the Marvell SATA3 RAID driver, launch the browser‑based Marvell RAID Utility (MRU), and configure RAID arrays on supported adapters. It covers installation, licensing, and initial setup, including enabling Active Scripting for the browser interface.
The document also details how to access local and remote adapters, create virtual disks, and perform maintenance tasks such as rebuilding a degraded RAID 1 array. Each operation is illustrated with screen prompts and required user actions.
All Marvell SATA3 RAID documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
How do I launch the Marvell RAID Utility after installation?
Use the desktop shortcut or the system‑tray icon; the default browser opens and displays the MRU login page.
How can I rebuild a failed RAID 1 array?
Select the Rebuild function, choose the replacement disk, and follow the on‑screen instructions to restore the data.
How do I install the Marvell SATA3 driver?
Insert the ASRock support CD, click “Install all” or “Marvell SATA3 Driver”, and follow the wizard prompts to complete the installation.
How can I access the Marvell RAID Utility remotely?
Open a web browser, enter http://<Your IP Address>:8845/MRU/JumpPage.php?Target=LoginPage (or use the system name), and log in with an administrator account.
How do I install the Marvell SATA3 driver?
Insert the ASRock support CD, click “Install all” or “Marvell SATA3 Driver”, then follow the installation wizard.
How can I access the RAID Utility remotely?
Open a web browser and navigate to http://<Your IP Address>:8845/MRU/JumpPage.php?Target=LoginPage, using the system’s IP or name.
