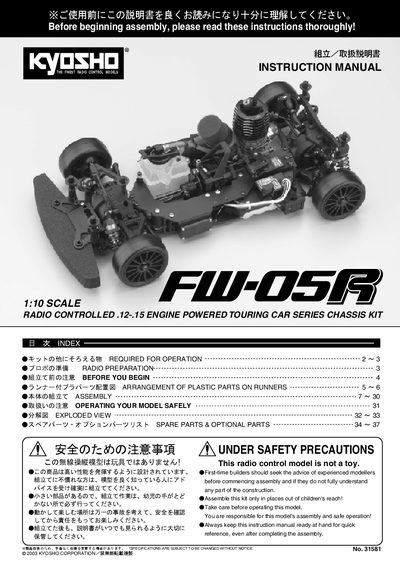

Kyosho FW-05R Assembly Instruction Manual
The Kyosho FW‑05R is a 2‑channel radio‑control chassis kit that requires a 2‑channel transmitter, two servos, and a 6 V Ni‑Cd battery. This manual guides users through preparation, safety checks, and the complete assembly process, including detailed exploded views and part‑by‑part instructions.
Key sections cover required tools, safety precautions, part arrangement on runners, the assembly sequence, spare‑part and optional‑part lists, and contact information for Kyosho's user‑consultation service in Japan. This manual is written in Japanese.
Kyosho FW-05R specifications
| Conversion purpose | Converts FW-05R to FW-05RR |
|---|---|
| Required tool (2.5 mm hex wrench) | 2.5 mm hex wrench |
| Required tool (5 mm hex wrench) | 5 mm hex wrench |
| Optional component | Ball bearings (optional) |
| Separate purchase requirement | Some parts must be purchased separately |
All Kyosho FW-05R documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What does the FW-05RR conversion kit convert?
It converts the FW-05R foam‑tire version (No.31582) into the FW-05RR foam‑tire version.
Are ball bearings required for the conversion?
No, ball bearings are optional.
Which battery should be used for the transmitter?
Only the No.71162 6 V 600 mAh Ni‑Cd battery may be used with the transmitter.
