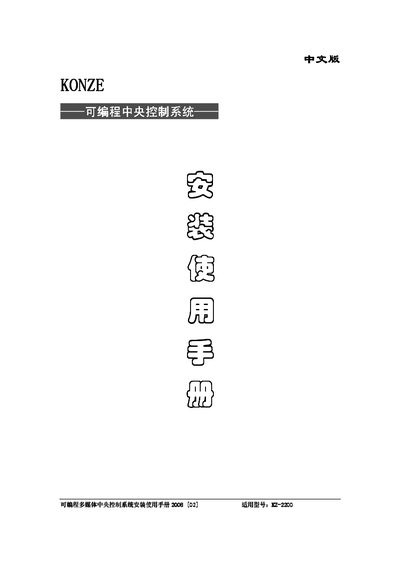

KONZE KZ-2200 Central Control System Installation Manual
The KONZE KZ-2200 is a programmable multimedia central control system that integrates video, audio, and device control through a panel and computer software. It offers features such as a built‑in VGA switch, audio‑video matrix, infrared learning, and network control.
This manual explains how to unpack, connect the host to a computer, wire application devices, install the infrared emitter and projector control cable, set up the electric screen, use the control panel, and learn infrared remote codes. Safety precautions and wiring diagrams are also provided. This manual is written in Chinese.
KONZE KZ-2200 specifications
| VGA Switch | 4×2 |
|---|---|
| Audio‑Video Matrix | 3×1, video bandwidth 100 MHz |
| MIC Input | 1 channel |
| I/O Control Interfaces | 2 channels |
| Volume Control | High‑fidelity stepless control |
| Network Module Slot | Optional, supports remote control |
| Power Input | 220 V 50 Hz AC |
| Electric Screen Power | Built‑in AC220Y supply |
| Infrared Emission Interface | Standard RS‑232 connector |
Source: KONZE KZ-2200 Central Control System Installation Manual
All KONZE KZ-2200 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What power voltage and frequency should be used for the system?
The system requires an AC power source of 220 V at 50 Hz.
From: KONZE KZ-2200 Central Control System Installation Manual
How many VGA inputs does the KZ‑2200 support?
It includes a built‑in 4×2 VGA switch, providing two VGA input channels for desktop and laptop computers.
From: KONZE KZ-2200 Programmable Multimedia Central Control System User Manual
How do I connect the infrared emitter to the system?
Insert the emitter plug into the “红外发射接口” socket, attach the emitter head to the device’s infrared receiver with tape, and ensure the correct polarity.
From: KONZE KZ-2200 Programmable Multimedia Central Control System User Manual
