Key facts
- Brand
- Kohler
- Model
- 8122T-C01
- Category
- Other
- Industry
- Appliances
- Documents
- 2
- Languages
- ZH · EN
- Last added
- 2012-01-04
Start here

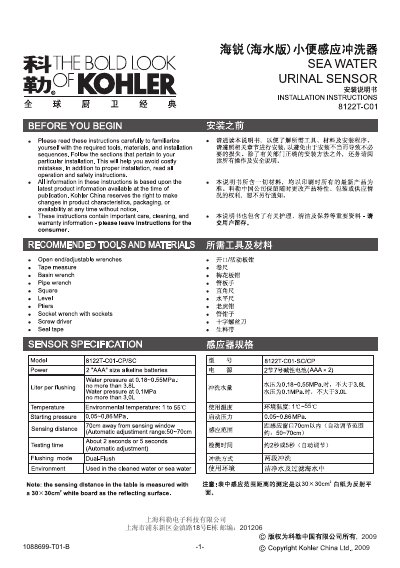

Shanghai KOHLER Electronic technology 8122T-C01 installation Manual
This manual provides step‑by‑step instructions for installing the sensor‑activated urinal accessory (model 1088699‑T01‑B) supplied by Shanghai Koher. It lists all components, shows how to connect the control box, solenoid valve, and sensor, and explains the proper placement of the slurry mold and valve box.
The guide also details battery installation (two AAA alkaline cells), adjustment of flushing volume via a 2.5 mm hex screw, and common troubleshooting steps such as clearing blocked valve cores and cleaning filters. This manual is written in Chinese.
Kohler 8122T-C01 specifications
| Power source | 2 AAA alkaline batteries |
|---|---|
| Operating water pressure | 0.18 – 0.55 MPa |
| Starting pressure | 0.05 – 0.86 MPa |
| Environmental temperature range | 1 °C – 55 °C |
| Maximum flushing volume | 3.0 L |
Source: Kohler 8122T-C01 Urinal Sensor Installation Instructions
All Kohler 8122T-C01 documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
How do I replace the batteries in the sensor unit?
Open the battery box cover, insert two AAA alkaline batteries with correct polarity, and tighten the cover with the screws.
From: Shanghai KOHLER Electronic technology 8122T-C01 installation Manual
What batteries does the sensor use?
The sensor is powered by two AAA alkaline batteries.
From: Kohler 8122T-C01 Urinal Sensor Installation Instructions
What water pressure range is required for proper operation?
The sensor works when the water pressure is between 0.18 MPa and 0.55 MPa.
From: Kohler 8122T-C01 Urinal Sensor Installation Instructions
