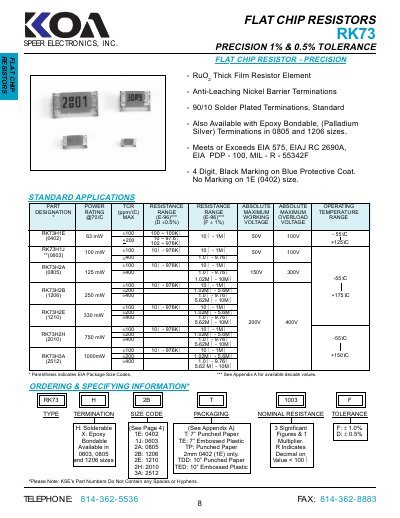

Speer Electronics RK73 Series Flat Chip Resistors Datasheet
The document describes the SPEER ELECTRONICS, INC. RK73 series of precision flat chip resistors, available in 1% and 0.5% tolerance ratings. These components feature an anti-leaching nickel barrier and are offered in eight different sizes ranging from 0201 to 2512.
Read onlineKOA RK73 specifications
| Tolerance | 1% & 0.5% |
|---|---|
| Resistance Range | 10 Ω to 22 MΩ |
| Operating Temperature Range | -55°C to +175°C |
| Available Sizes | 0201, 0402, 0603, 0805, 1206, 1210, 2010, 2512 |
Source: Speer Electronics RK73 Series Flat Chip Resistors Datasheet
All KOA RK73 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating temperature for RK73 resistors?
The maximum operating temperature range extends up to +175°C.
From: Speer Electronics RK73 Series Flat Chip Resistors Datasheet
What is the minimum terminal adhesion strength?
The minimum terminal adhesion strength is 15 grams when pulling one terminal axially.
From: Speer Electronics RK73 Series Flat Chip Resistors Datasheet
What resistance range does the RK73 series cover?
The series provides resistance values from 0.1 Ω up to 22 MΩ.
What are the standard voltage ratings for the RK73 resistors?
0402 size parts are rated for 200 V, while larger sizes such as 0603 and up are rated for 400 V.
