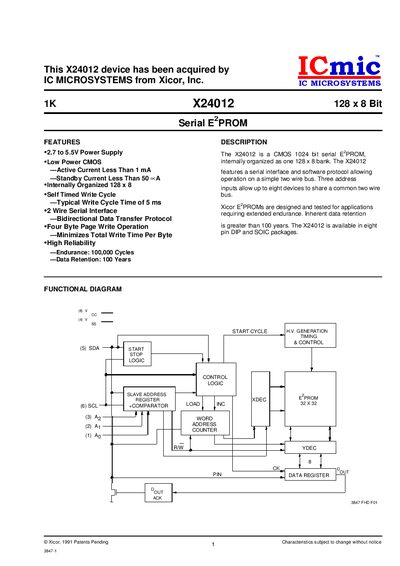

Xicor X24012 EEPROM Datasheet
The X24012 is a CMOS 1024‑bit serial EEPROM organized as a single 128 × 8‑bit bank. It operates from a 2.7 V to 5.5 V supply and features a two‑wire serial interface with three address pins, allowing up to eight devices on the same bus. The device supports byte‑write, four‑byte page‑write, and several read modes with an endurance of 100 000 cycles and data retention of 100 years.
The datasheet provides pin descriptions, timing diagrams, write‑cycle procedures, packaging dimensions, ordering codes, and warranty information. It also includes guidelines for pull‑up resistor selection and acknowledges the RoHS‑compliant lead‑free options.
ICmic X24012 specifications
| Power supply voltage | 2.7 V to 5.5 V |
|---|---|
| Active current | < 1 mA |
| Standby current | < 50 µA |
| Typical write cycle time | 5 ms |
| Endurance | 100 000 cycles |
| Data retention | 100 years |
| Memory organization | 128 × 8 bits (1024 bits total) |
| Package types | 8‑lead DIP (P) and 8‑lead SOIC (S) |
| Maximum devices on bus | 8 |
| Industrial temperature range | -40 °C to +85 °C |
