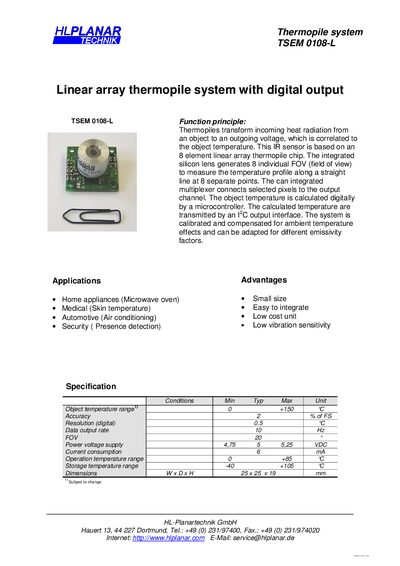

HLPLANAR TSEM 0108-L Thermopile System Manual
The TSEM 0108-L is a linear‑array thermopile system that converts incoming heat radiation into a voltage proportional to object temperature. An 8‑element chip with an integrated silicon lens provides eight separate fields of view, and a built‑in multiplexer routes selected pixels to a microcontroller that calculates temperature and outputs it via a digital I°C interface.
The system is suited for home appliances, medical skin‑temperature measurement, automotive air‑conditioning, and security presence detection. It offers a compact size, low cost, and low vibration sensitivity, with detailed specifications listed below.
HLPLANAR 08 L specifications
| Object temperature range | 0 °C to +150 °C |
|---|---|
| Accuracy | 2 % of FS |
| Resolution (digital) | 0.5 °C |
| Data output rate | 10 Hz |
| Power voltage supply | 4.75 V to 5.25 VDC |
| Current consumption | 6 mA |
| Operation temperature range | 0 °C to +85 °C |
| Storage temperature range | -40 °C to +105 °C |
| Dimensions (W×D×H) | 25 mm × 25 mm × 19 mm |
All HLPLANAR 08 L documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What output interface does the TSEM 0108-L use?
The calculated temperature is transmitted by an I°C digital output interface.
What is the power supply voltage range for the system?
It operates from 4.75 V to 5.25 VDC.
What is the time constant of the sensor unit?
The time constant is up to 30 ms.
From: HLPLANAR TSE 01/08 L Thermopile Infrared Sensor Unit Specification
