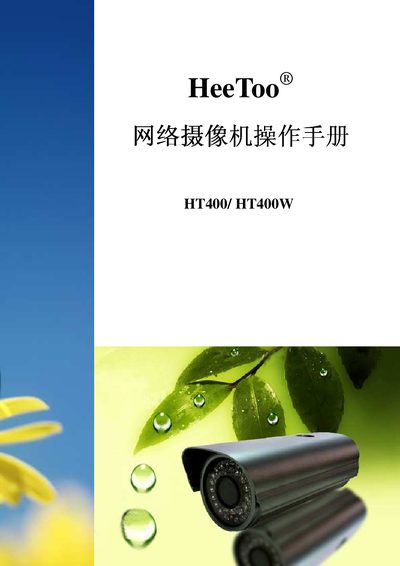

HeeToo HT400/HT400W Network Camera User Manual
This manual introduces the HT400/HT400W network camera, covering safety guidelines, installation environment, packaging contents, and basic handling precautions. It explains how to install the camera indoors or outdoors, protect it from lightning, temperature extremes, and how to avoid vibration or magnetic interference.
The guide details the camera’s main features, technical parameters, and step‑by‑step procedures for network setup, wireless configuration, video and audio settings, alarm inputs/outputs, and advanced functions such as DDNS, PPPoE, and motion detection. Appendices provide common fault troubleshooting and a wireless configuration example. This manual is written in Chinese.
HeeToo HT400 specifications
| Image Sensor (HT400‑L) | 1.8" Sony CCD, 420 TVL lines |
|---|---|
| Minimum Illumination (HT400‑H) | 0.015 LUX @ F1.4 |
| CPU | Imagia MCP4010 ARM9 RISC Processor |
| Flash ROM | 2 MB |
| SDRAM | 8 MB |
| DDRAM | 32 MB |
| Ethernet | 10/100 Mbps RJ45 |
| Power Supply | DC 12 V 3 A |
| Dimensions (W × H × D) | 245 mm × 102 mm × 95 mm |
| Operating Temperature | 0 °C – 50 °C |
All HeeToo HT400 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What video resolutions can the HT400 record?
Supported resolutions include D1 (720 × 576), CIF (352 × 288), FIELD (720 × 288) and QCIF (176 × 144).
How many alarm inputs and outputs does the camera support?
It provides two alarm input channels and two alarm output channels (optional).
