Key facts
- Brand
- Hammer3100
- Model
- Hammer3100 VDSL
- Category
- Network Switches
- Documents
- 2
- Languages
- ZH
- Last added
- 2000-01-01
Start here

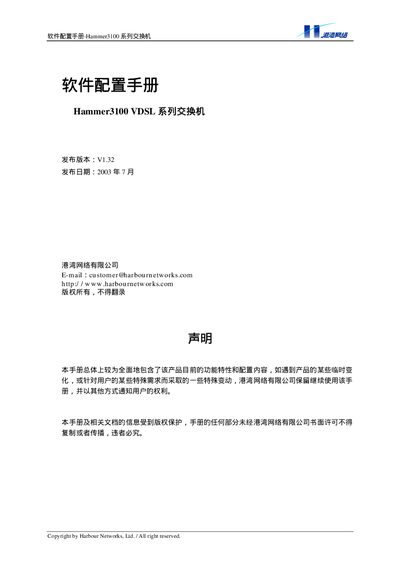

Harbour Networks Hammer3100 VDSL Switch Configuration Manual
This manual provides detailed instructions for configuring the Hammer3100 VDSL series switch from Harbour Networks. It explains the HammerOS operating system, command-line interface, and various management methods such as console, Telnet, SNMP, and web interface.
The document covers port configuration, VLAN and FDB setup, Spanning Tree Protocol, load sharing, MAC address limiting, logging, firmware upgrades via FTP, and other advanced features. It also includes example command sequences and troubleshooting tips for administrators. This manual is written in Chinese.
Hammer3100 Hammer3100 VDSL specifications
| Port configuration | 24 × 10Base‑S |
|---|---|
| Uplink ports | 1 × 100Base‑TX (optional 100Base‑TX/FX module) |
| Maximum upstream/downstream speed | 10 Mbps |
| Maximum transmission distance | Up to 1200 m |
All Hammer3100 Hammer3100 VDSL documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
How do I save the current configuration on the Hammer3100 switch?
Enter the command `save configuration` in the console to store the current settings.
From: Harbour Networks Hammer3100 VDSL Switch Configuration Manual
How many 10Base‑S ports does the Hammer3100 VDSL switch have?
The switch provides 24 10Base‑S ports.
What power options are available for the Hammer3100 VDSL series switch?
Two versions exist: an AC 220 V version and a DC –48 V version, each with its own power‑cable connection steps.
