Key facts
- Brand
- Fuji Xerox
- Model
- C3055
- Category
- Printer
- Industry
- Computers
- Documents
- 3
- Languages
- ZH · JA
- Last added
- 2012-03-16
Start here

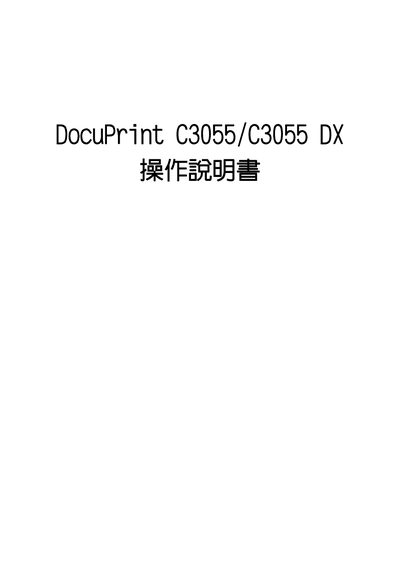

Fuji Xerox DocuPrint C3055/C3055 DX User Manual
This manual explains how to install and configure the DocuPrint C3055/C3055 DX, including safety precautions, network setup, and the use of CentreMare Internet Services. It also covers basic operation, paper handling, and the various printing functions such as multi‑page printing, PDF Bridge, and secure print.
Additional sections describe maintenance procedures, consumable replacement, troubleshooting, and how to use advanced features like secure data transmission (SSL/TLS) and remote monitoring via email or network tools. This manual is written in Japanese.
Fuji Xerox C3055 specifications
| Black‑white print speed | 35 pages/min |
|---|---|
| First page output time (color) | <30 seconds |
| Maximum monthly duty cycle | 65 000 pages |
| Processor | 350 MHz |
| Standard memory | 128 MB |
| Maximum memory | 640 MB |
| Power consumption (max) | <996 W |
| Standby power consumption | <4 W |
| Dimensions (W × D × H) | 499.5 mm × 534 mm × 407 mm |
All Fuji Xerox C3055 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What interfaces does the DocuPrint C3055 provide?
It offers a parallel port (IEEE1284), Ethernet 100BASE‑TX/10BASE‑T, and USB 2.0.
What is the maximum monthly duty cycle?
The printer is rated for up to 65 000 pages per month.
How do I set the printer’s IP address?
The IP address is set in the network configuration section of the manual.
What safety precautions must be observed before using the printer?
All items marked with a safety symbol must be read and strictly followed before operating the printer.
How can I reduce radio interference caused by the printer?
Re‑orient the receiving antenna, increase the distance between the printer and receiver, connect the printer to a different output line, or contact a qualified technician.
