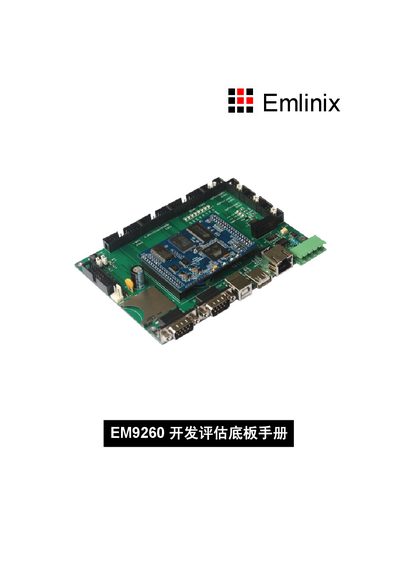

Emlinix EM9260 Backplane Development Manual
User Manual 21 pages · 490 KB · EN
This manual describes the hardware layout and backplane connections of the Emlinix EM9260 development board. It includes detailed pin assignments for each connector, power and signal specifications, and guidance for configuring the board under Linux.
Key sections cover connector CN1 (RS485/CAN), CN2‑CN15 pin definitions, USB host/device interfaces, GPIO and SPI assignments, and power supply requirements. The document also lists supported operating system versions and provides reference part numbers for components.
EMLINIX EM9260 specifications
| Supported Operating System | Linux 2.6 |
|---|---|
| Connector CN1 Interface | RS485 on ttyS3 |
| USB Ports | 2 (USB_HOST, USB_DEVICE) |
All EMLINIX EM9260 documents by type
User Manual 2
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What interface does connector CN1 provide?
Connector CN1 provides an RS485 interface on the ttyS3 serial line.
Which operating system is supported by the EM9260?
The EM9260 runs Linux version 2.6.
