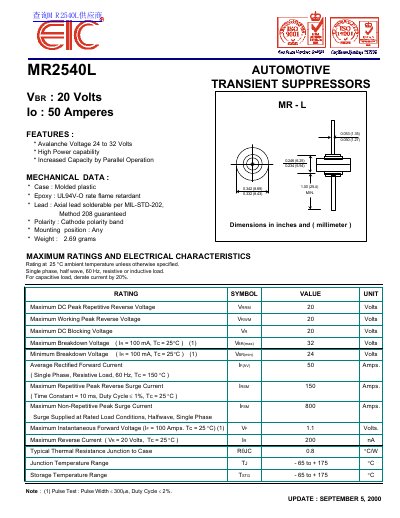

EIC MR2540L Automotive Transient Suppressor Datasheet
This document is a datasheet for the EIC MR2540L, an automotive transient suppressor component. It provides mechanical data including case dimensions and material specifications such as UL94V-0 flame retardant epoxy.
The text lists maximum ratings and electrical characteristics at 25 °C ambient temperature, specifying values for reverse voltage, forward current, surge currents, and thermal resistance.
EIC MR2540 specifications
| Avalanche Voltage Range | 24 to 32 Volts |
|---|---|
| Maximum DC Peak Repetitive Reverse Voltage | 20 Volts |
| Average Rectified Forward Current | 50 Amps. |
| Maximum Repetitive Peak Reverse Surge Current | 150 Amps. |
| Typical Thermal Resistance Junction to Case | 0.8 °C/W |
Source: EIC MR2540L Automotive Transient Suppressor Datasheet
All EIC MR2540 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum average rectified forward current for this device?
The maximum average rectified forward current is 50 Amps.
What are the minimum and maximum breakdown voltages at 25°C?
The minimum breakdown voltage is 24 Volts and the maximum is 32 Volts.
What is the maximum average forward current rating for this suppressor?
The device can handle an average rectified forward current of 50 Amps under specific load conditions.
What is the maximum non-repetitive peak surge current?
The unit supports a maximum non-repetitive peak surge current of 800 Amps.
