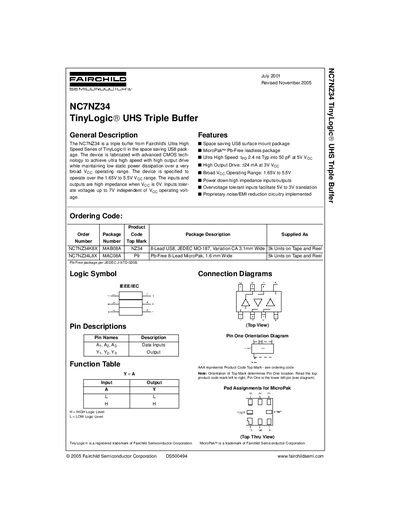

Fairchild NC7NZ34 Triple Buffer Datasheet
The NC7NZ34 is a triple buffer from Fairchild’s Ultra High Speed TinyLogic® series, offered in a space‑saving US8 surface‑mount package and a Pb‑free MicroPak leadless package. It operates over a wide supply range and provides high output drive while maintaining low static power.
The document includes electrical characteristics, absolute maximum ratings, pin descriptions, ordering information, and mechanical dimensions, as well as packaging and tape‑and‑reel specifications for both package types.
Dual NC7NZ34 specifications
| Operating Supply Voltage (Vcc) | 1.65 V to 5.5 V |
|---|---|
| Absolute Maximum Supply Voltage | 0.5 V to 7.0 V |
| Propagation Delay (typ) | 0.15 ns |
| Operating Temperature Range | 40 °C to 85 °C |
| Package Types | US8 surface‑mount, MicroPak Pb‑free leadless |
All Dual NC7NZ34 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Which package options are available for the NC7NZ34?
The part is offered in an 8‑lead US8 surface‑mount package and a Pb‑free MicroPak leadless package.
What package options are available for the NC7NZ34?
The device is offered in a space‑saving US8 surface‑mount package and a Pb‑free MicroPak lead‑less package.
What is the maximum input voltage the device can tolerate?
Inputs tolerate voltages up to 7 V independent of the supply voltage.
