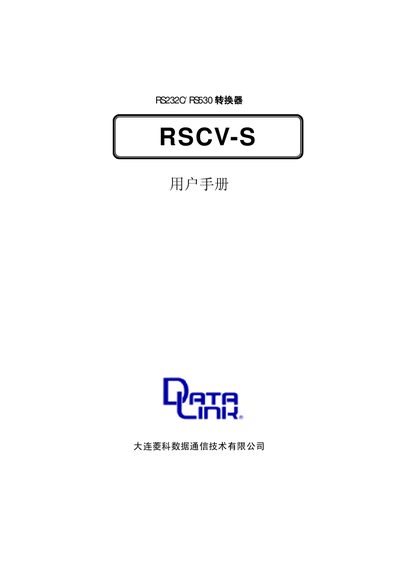

Data-Link RSCV‑S RS232C/RS530 Converter User Manual
The manual introduces the RSCV‑S converter, a device that converts RS232C signals to RS530 (RS422) levels, allowing extended communication distances up to 1200 m. It describes the product’s features, operating environment, and the two available power options – an optional DC power supply (AD‑150T) or power via the RS232C 9‑pin port.
Physical specifications such as dimensions, weight, operating temperature, humidity range, and electrical parameters are provided, along with detailed wiring diagrams for both the RS232C (Dsub25‑pin) and RS530 (Dsub25‑socket) connectors. The manual also includes user registration instructions, packaging contents, and after‑sales service contact information. This manual is written in Chinese.
DATALINK RS232C specifications
| Operating humidity | 30 %–80 % (no condensation) |
|---|---|
| Dimensions (W×H×L) | 53 mm × 19 mm × 64 mm |
| Weight | ≈46 g |
| Maximum communication speed | 115200 bps |
| Power consumption | 5 V / 50 mA |
| RS232C connector type | D‑sub 25 (DCE) |
| RS422 connector type | 5‑pin terminal block |
All DATALINK RS232C documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum communication speed of the RSCV‑T?
The converter supports up to 115200 bps.
How far can the communication distance be extended using two RSCV‑T units?
Using two units can extend the RS232C communication distance to 1200 m.
