Key facts
- Brand
- Compool
- Model
- Cp3800
- Documents
- 2
- Languages
- EN
- Last added
- 2012-08-06
Start here

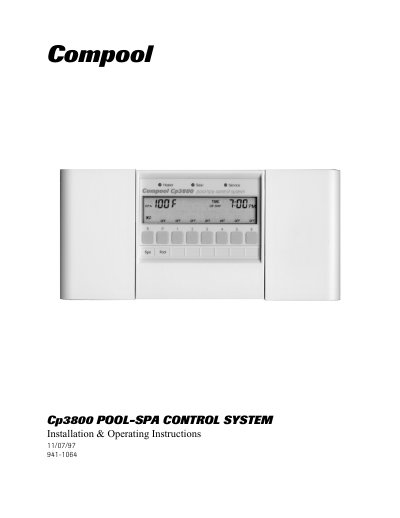

Compool Cp3800 Pool-Spa Control System Installation and Operating Instructions
The document serves as a comprehensive guide for installing and operating the Compool Cp3800 Pool-Spa Control System. It details package contents, plumbing requirements, high and low voltage wiring procedures, and specific connections for components such as valve actuators, heaters, sensors, and solar heating systems.
The manual also covers system start-up, programming features including time-of-day settings and run times, control panel operation with various equipment keys, and troubleshooting steps. It includes sections on winterizing the system and understanding warranty terms.
Compool Cp3800 specifications
| Control Panel Model | CP-3800 |
|---|---|
| Power Center Model | LX-3800 |
| Valve Actuator Quantity | 2 qty. |
| 3-Port Valve Quantity | 2 qty. |
Source: Compool Cp3800 Pool-Spa Control System Installation and Operating Instructions
All Compool Cp3800 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What safety precaution is needed regarding water temperature?
Water in excess of 100 degrees Fahrenheit may be hazardous to your health.
From: Compool Cp3800 Pool-Spa Control System Installation and Operating Instructions
How should the 3-port valve be plumbed on the suction side?
The center port connects to the filter pump, with spa and pool suction connected to the other ports.
From: Compool Cp3800 Pool-Spa Control System Installation and Operating Instructions
What is the maximum safe water temperature?
Water in excess of 100 degrees Fahrenheit may be hazardous to your health.
From: Compool CP3800 Pool-Spa Control System Installation & Operating Instructions
How should the spa be positioned relative to the pool?
The spa should be at or above the level of the pool.
From: Compool CP3800 Pool-Spa Control System Installation & Operating Instructions
