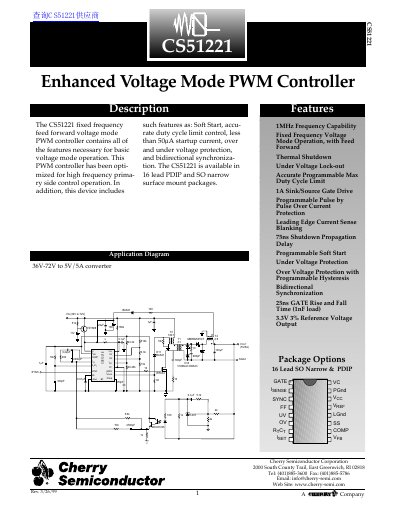

Cherry Semiconductor CS51221 Enhanced Voltage Mode PWM Controller Datasheet
The CS51221 is a fixed frequency feed forward voltage mode PWM controller optimized for high frequency primary side control operation. It includes features such as soft start, accurate duty cycle limit control, over and under voltage protection, and bidirectional synchronization. The device is available in 16 lead PDIP and SO narrow surface mount packages.
Read onlineCherry CS51221 specifications
| Frequency Capability | 1MHz |
|---|---|
| Startup Current | less than 50uA |
| Reference Voltage | 3.3V 3% |
| Gate Drive Output | 1A Sink/Source |
| Shutdown Propagation Delay | 75ns |
| GATE Rise and Fall Time | 25ns (1nF load) |
| Thermal Shutdown | 125 to 180°C |
