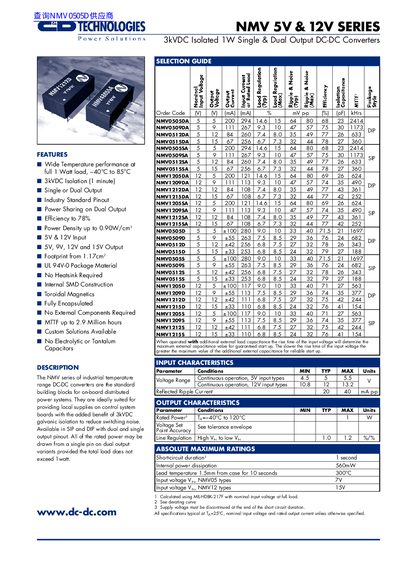

C&D Technologies NMV 5V & 12V Series Datasheet
This document is a technical datasheet for the C&D Technologies NMV 5V & 12V Series, which are 3kVDC isolated 1W single and dual output DC-DC converters. The series is designed as standard building blocks for on-board distributed power boards, offering galvanic isolation to reduce switching noise.
Read onlineCD 12V Series specifications
| Output Power | 1W |
|---|---|
| Isolation Voltage | 3kVDC (For 1 minute) |
| Input Voltage (NMV12 types) | 10.8V to 13.2V |
| Switching Frequency (5V input) | 720 to 135 kHz |
| Switching Frequency (12V input) | 150 to 170 kHz |
Source: C&D Technologies NMV 5V & 12V Series Datasheet
All CD 12V Series documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Do these converters require a heatsink?
No, no heatsink is required for operation.
From: C&D Technologies NMV 5V & 12V Series Datasheet
What is the maximum continuous input voltage for the NMV12 types?
The maximum continuous input voltage for NMV12 types is 15V.
From: C&D Technologies NMV 5V & 12V Series Datasheet
Do these converters require a heatsink?
No, the NMA series does not require a heatsink.
From: C&D Technologies NMA 5V & 12V Series Isolated Dual Output DC-DC Converters Datasheet
What is the maximum input voltage for 5V types?
The absolute maximum input voltage for NMA0S types is 7V.
From: C&D Technologies NMA 5V & 12V Series Isolated Dual Output DC-DC Converters Datasheet
