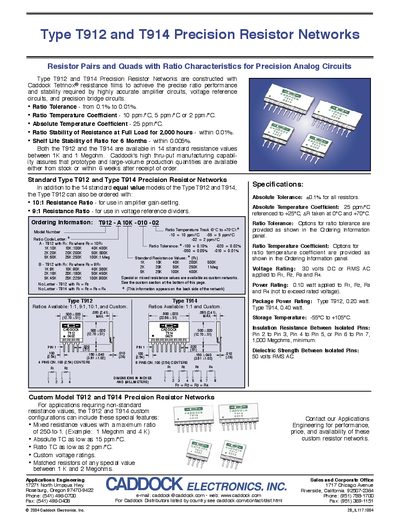

Caddock Electronics T912/T914 Precision Resistor Networks Datasheet
The Type T912 and T914 are precision resistor networks constructed with Caddock Tetrinox resistance films. They are designed to achieve precise ratio performance and stability required by highly accurate amplifier circuits, voltage reference circuits, and precision bridge circuits.
These models offer various resistance ratios including 1:1, 9:1, and 10:1, with absolute tolerances of +0.1% and temperature coefficients as low as 25 ppm/°C. The T912 is rated for 0.20 watts while the T914 is rated for 0.40 watts.
CADDOCK T912 specifications
| Absolute Tolerance | +0.1% |
|---|---|
| Absolute Temperature Coefficient | 25 ppm/°C |
| Ratio Stability (Full Load) | within 0.01% |
| Shelf Life Stability | within 0.005% |
| Voltage Rating (T912) | 30 volts DC or RMS AC |
| Power Rating (T914) | 0.40 watt |
Source: Caddock Electronics T912/T914 Precision Resistor Networks Datasheet
All CADDOCK T912 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What resistance ratios are available for the Type T912?
The Type T912 is available with 1:1, 9:1, and 10:1 resistance ratios.
From: Caddock Electronics T912/T914 Precision Resistor Networks Datasheet
What are the standard resistance values for these networks?
Standard models are available in 14 values between 1K and 1 Megohm.
From: Caddock Electronics T912/T914 Precision Resistor Networks Datasheet
What ratio tolerance is offered for the T912 and T914 networks?
The ratio tolerance ranges from 0.1% down to 0.01%.
What is the voltage rating of these resistor networks?
They are rated for 30 volts DC or RMS AC.
