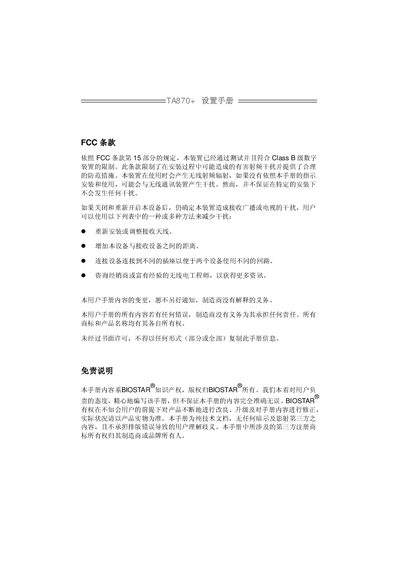

Biostar TA870+ Motherboard User Manual
User Manual 87 pages · 2.7 MB · ZH
This manual covers safety precautions such as anti‑static handling and FCC interference mitigation, then walks the user through hardware installation, connector and jumper setup, and RAID configuration. Detailed BIOS menus and software utilities are described, along with troubleshooting tips.
A full specifications section lists supported CPUs, memory types, storage interfaces, and peripheral connectors, while the final chapters explain password management and compliance information. This manual is written in Chinese.
Biostar A870 specifications
| CPU Socket | Socket AM3 |
|---|---|
| Supported CPUs | AMD Sempron / Phenom II / Athlon |
| Maximum Memory | 16 GB DDR3 |
| Memory Slots | 4 DDR3 DIMM slots |
| IDE Interface | 1 port, supports 2 devices |
| SATA Interface | 5 ports, each supports 1 device |
| USB Ports | 9 ports (front panel 2 per port) + 6 additional ports |
| LAN Controller | Realtek RTL8111E |
| Audio Codec | ALC892, 8‑channel |
All Biostar A870 documents by type
User Manual 2
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum amount of memory the TA870+ supports?
The motherboard supports up to 16 GB of DDR3 memory.
Which CPUs are compatible with the TA870+ board?
It supports AMD Sempron, Phenom II and Athlon processors.
