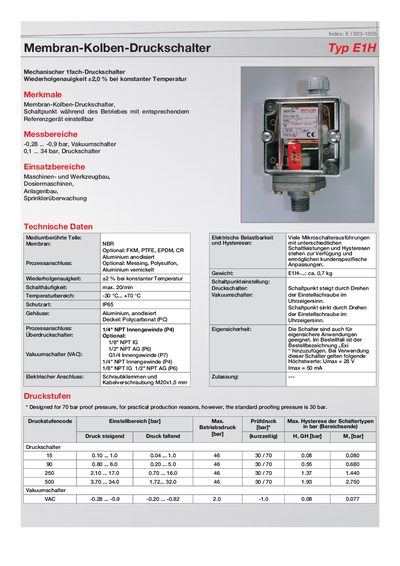

Barksdale E1H Membrane Piston Pressure Switch Data Sheet
This document provides technical specifications for the Barksdale E1H Membrane Piston Pressure Switch. It details the device's operating ranges, including vacuum (-0.28 to -0.9 bar) and positive pressure (0.1 to 34 bar), along with its repeatability accuracy of +2% at constant temperature.
The leaflet outlines construction materials such as NBR membranes with optional FKM or PTFE, anodized aluminum housings, and various process connection options like 1/4" NPT. It also lists electrical load capabilities for different contact types (silver or gold) and provides a table of pressure ratings versus proof pressures. This manual is written in German.
Barksdale E1H specifications
| Repeatability Accuracy | +2.0 % at constant temperature |
|---|---|
| Vacuum Range | -0.28 ... -0.9 bar |
| Pressure Range | 0.1 ... 34 bar |
| Switching Frequency | max. 20/min |
| Operating Temperature Range | -30 °C... +70 °C |
| Protection Class | IP65 |
| Housing Material | Anodized Aluminum |
| Cover Material | Polycarbonate (PC) |
Source: Barksdale E1H Membrane Piston Pressure Switch Data Sheet
