Start here

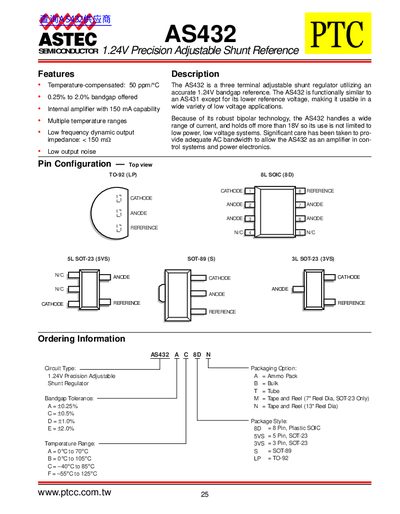

PTCC AS432 1.24V Precision Adjustable Shunt Reference Datasheet
The AS432 is a three‑terminal adjustable shunt regulator that uses an accurate 1.24 V bandgap reference. It offers 0.25 %‑2.0 % bandgap tolerance, an internal amplifier capable of 150 mA, and low‑frequency dynamic output impedance below 150 mΩ. The device is designed for low‑voltage applications but can handle up to 18 V reverse breakdown and operates over a wide temperature range.
The datasheet provides absolute maximum ratings, recommended operating conditions, pin configurations for various packages (TO‑92, SOIC, SOT‑23, SOT‑89), and typical performance curves including voltage regulation, noise, and pulse response.
ASTEC AS432 specifications
| Reference Voltage | 1.24 V |
|---|---|
| Temperature Coefficient | 50 ppm/°C |
| Bandgap Tolerance | 0.25 %‑2.0 % |
| Internal Amplifier Current Capability | 150 mA |
| Cathode‑Anode Reverse Breakdown Voltage | 18 V |
| Reference Input Current | 1 mA |
| Power Dissipation (TO‑92) | 775 mW |
Source: PTCC AS432 1.24V Precision Adjustable Shunt Reference Datasheet
All ASTEC AS432 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the reference voltage of the AS432?
The AS432 provides a 1.24 V precision reference voltage.
From: PTCC AS432 1.24V Precision Adjustable Shunt Reference Datasheet
What is the maximum cathode‑anode reverse breakdown voltage?
The device can tolerate up to 18 V reverse breakdown between cathode and anode.
From: PTCC AS432 1.24V Precision Adjustable Shunt Reference Datasheet
What is the reference voltage of the AS432?
The AS432 provides a 1.24 V precision adjustable shunt reference.
From: ASTEC AS432 1.24V Precision Adjustable Shunt Reference Datasheet
What is the maximum reverse voltage the device can withstand?
The cathode‑anode reverse breakdown rating is 18 V.
From: ASTEC AS432 1.24V Precision Adjustable Shunt Reference Datasheet
