Start here

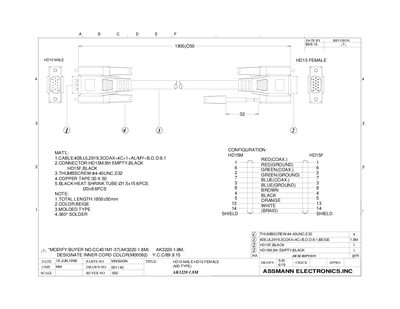

ASSMANN ELECTRONICS.INC HD15 MALE-HD15 FEMALE
The document provides a parts list and specifications for the Assmann HD15 cable assembly with a male HD15 connector on one end and a female HD15 connector on the other. It lists the cable construction, connectors, thumb screws, copper tape, heat‑shrink tubing, total length, colors, and shielding details.
The HD15 assembly is intended for applications requiring a 1800.5 mm coaxial cable with multiple conductors, a 360° solder shield, and specific grounding and color coding. All part numbers and material codes are included for ordering and verification.
Assmann MALE-HD15 specifications
| Total length | 1800.5 mm |
|---|---|
| Cable construction | #28, UL2919, 3COAX+4C+1 +AL/MY+B, 0.D:8.1 |
| Male connector | HD15M, black with red ground |
| Female connector | HD15F, black with green coax |
| Thumb screw size | #4-40 UNC, E32 |
| Copper tape size | 30 × 50 mm |
| Heat shrink tube (1.5 × 15 mm) | 6 pcs, blue (ground) |
| Heat shrink tube (3 × 8 mm) | 6 pcs, brown |
| Molded type | Braid |
| Shielding | 360° solder shield |
All Assmann MALE-HD15 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the total length of the HD15 cable assembly?
The cable assembly is 1800.5 mm long.
What type of connector is used on the male end?
The male end uses an HD15M connector, black with a red ground pin.
