Key facts
- Brand
- APSA
- Model
- D6011S
- Industry
- Industrial
- Documents
- 2
- Languages
- DE
- Last added
- 2012-05-10
Start here

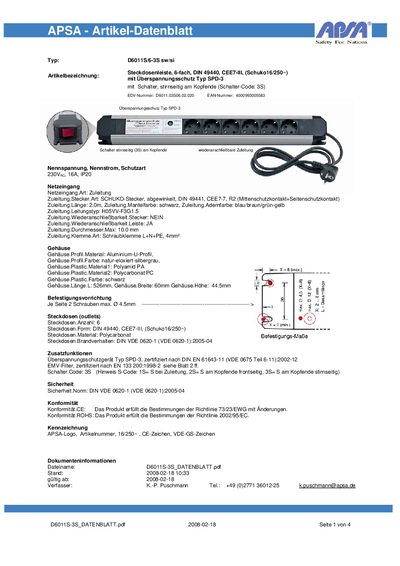

APSA D6011S/6-3S sw/si Surge Protector Datasheet
The D6011S/6-3S sw/si is a six‑outlet DIN 49440 power strip with built‑in SPD‑3 surge protection and a front‑mounted switch. It features a Schuko‑type plug, a 2.0 m black cable with blue/brown/green‑yellow conductors, and an aluminium‑U‑profile housing.
The device complies with DIN EN 61643‑11 and VDE standards, offering a rated voltage of 230 V, 16 A current, IP20 protection, and a short‑circuit capacity of 6 kA. An internal and external disconnect device provide fire safety, and an EMV filter reduces high‑frequency disturbances. This manual is written in German.
APSA D6011S specifications
| Rated voltage | 230 V·c |
|---|---|
| Rated current | 16 A |
| Ingress protection | IP20 |
| Cable length | 2.0 m |
| Cable colour | black |
| Conductor colours | blue/brown/green‑yellow |
| Maximum cable diameter | 10.0 mm |
| Short‑circuit capacity | 6 kA |
| Maximum protective device rating | 16 A |
All APSA D6011S documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the rated voltage and current of the APSA D6011S/6-3S sw/si?
The device is rated for 230 V·c and 16 A.
What type of plug does the power strip use?
It uses a Schuko‑type plug (CEE7‑7, H2) with a bent design.
How many outlets does the D6011S-2S have?
It provides six Schuko outlets.
What are the rated voltage and current of the device?
The device is rated for 230 V, 16 A and has protection class IP20.
