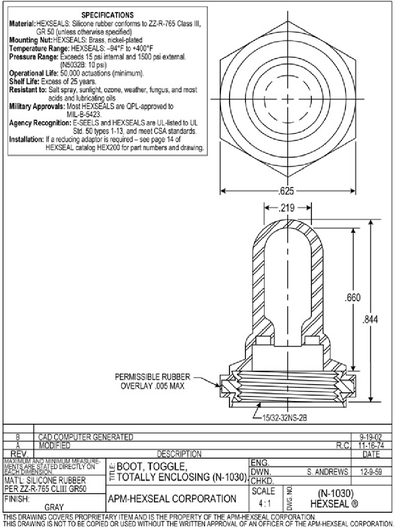

APM-HEXSEAL N-1030 Product Leaflet
The APM-HEXSEAL N-1030 is a hexseal made of silicone rubber (72‑R‑765 Class III, GR 450) with a brass, nickel‑plated mounting nut. It operates from –4 °F to +400 °F and can withstand pressures exceeding 15 psi internal and 1500 psi external, with a minimum operational life of 50,000 actuations and a shelf life of over 25 years.
The seal is resistant to salt spray, sunlight, ozone, weather, fungus, and most chemicals. It is UL‑listed to UL Std. 50 types 1‑13 and meets CSA standards. Installation may require a reducing adaptor as referenced in the HEXSEAL catalog.
APM N-1030 specifications
| Material | Silicone rubber conforms to 72‑R‑765 Class III, GR 450 |
|---|---|
| Mounting Nut | Brass, nickel‑plated |
| Temperature Range | -4 °F to +400 °F |
| Pressure Range | Exceeds 15 psi internal and 1500 psi external |
| Operational Life | 50,000 actuations (minimum) |
| Shelf Life | Excess of 25 years |
| Resistance | Salt spray, sunlight, ozone, weather, fungus, most chemicals |
| Agency Recognition | UL‑listed to UL Std. 50 types 1‑13, meets CSA standards |
| Permissible Rubber Overlay | 0.005 mm max |
All APM N-1030 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What temperature range does the N-1030 hexseal support?
The N-1030 operates from –4 °F to +400 °F.
What is the pressure rating of the N-1030 hexseal?
It exceeds 15 psi internal pressure and 1500 psi external pressure.
