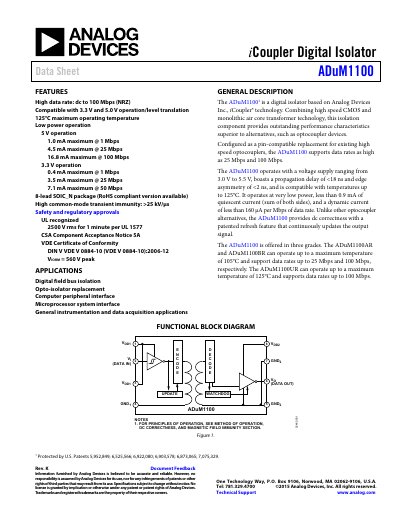

Analog Devices ADuM1100 Digital Isolator Data Sheet
The ADuM1100 is a digital isolator based on Analog Devices' iCoupler technology, combining high-speed CMOS and monolithic air core transformer technology. It serves as a pin-compatible replacement for existing high-speed optocouplers, offering superior performance with data rates up to 100 Mbps and low power operation.
Read onlineAnalog Devices ADUM1100 specifications
| Operating Temperature Range | -40°C to +125°C |
|---|---|
| Input Supply Current (Quiescent) | 0.8 mA max |
| Output Supply Current (Quiescent) | 0.06 mA max |
| Propagation Delay Time | < 18 ns |
| Common-Mode Transient Immunity | >25 kV/μs |
All Analog Devices ADUM1100 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Is the ADuM1100 compatible with optocouplers?
Yes, it is configured as a pin-compatible replacement for existing high-speed optocouplers.
What voltage supply range does the ADuM1100 operate with?
The device operates with a voltage supply ranging from 3.0 V to 5.5 V.
What is the maximum data rate of the ADuM1100?
The ADuM1100 supports data rates as high as 100 Mbps, depending on the specific grade selected.
What are the operating voltage ranges for the ADuM1100?
The device operates with supply voltages ranging from 3.0 V to 5.5 V.
What supply voltage range does the ADuM1100 support?
It works with a supply voltage from 3.0 V to 5.5 V.
What is the propagation delay of the device?
The propagation delay is less than 18 ns.
