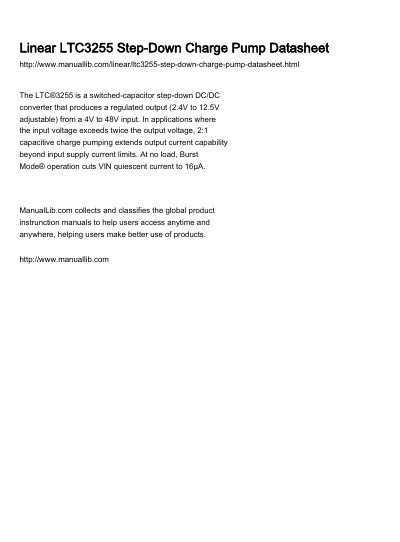

The LTC3255 is a switched-capacitor step-down DC/DC converter from Linear that produces a regulated output (2.4V to 12.5V adjustable) from a 4V to 48V input. In applications where the input voltage exceeds twice the output voltage, 2:1 capacitive charge pumping extends output current capability beyond input supply current limits. At no load, Burst Mode® operation cuts VIN quiescent current to 16µA.
The LTC3255 is a switched-capacitor step-down DC/DC converter that produces a regulated output from 2.4V to 12.5V adjustable from a 4V to 48V input. It utilizes 2:1 capacitive charge pumping to extend output current capability when the input voltage exceeds twice the output voltage. At no load, Burst Mode operation reduces quiescent current to 16pA.
| Input Voltage Range | 4V to 48V |
|---|---|
| Adjustable Regulated Output | 2.4V to 12.5V |
| Output Current | 50mA Maximum |
| Quiescent Current (No Load) | 16pA |
| Operating Junction Temperature | 150°C Maximum |
| Package Types | 10-Lead MSOP and 10-Lead DFN |
The device accepts an input voltage range of 4V to 48V.
The LTC3255 provides a maximum output current of 50mA.
Yes, it features input fault protection ranging from -52V to 60V.
