The Maxeta™ iFA series is a full brick power module with an input voltage of 24V, an output voltage of 28V, an output current of 15A, and an efficiency of 89.5%. The module is ideally suited for CDMA wireless applications to power RF amplifiers.

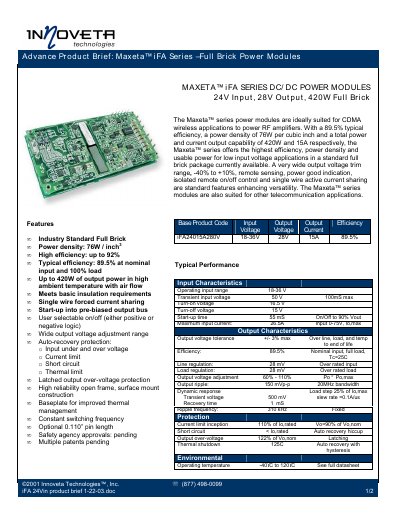

This document is an advance product brief for the Innoveta Maxeta™ iFA Series full brick DC/DC power modules. The specific model covered is the iFA24015A280V, designed for 24V input and 28V output applications. It highlights the module's suitability for CDMA wireless applications to power RF amplifiers, noting a typical efficiency of 89.5% and a power density of 76W per cubic inch.
| Input Voltage Range | 18-36V |
|---|---|
| Efficiency | 89.5% |
| Power Density | 76W / inch3 |
| Operating Temperature | -40°C to 120°C |
| Output Ripple | 150 mVp-p |
The typical efficiency is 89.5% at nominal input and 100% load.
Yes, the Maxeta series is ideally suited for CDMA wireless applications to power RF amplifiers.
The maximum input current is 26.5A.
