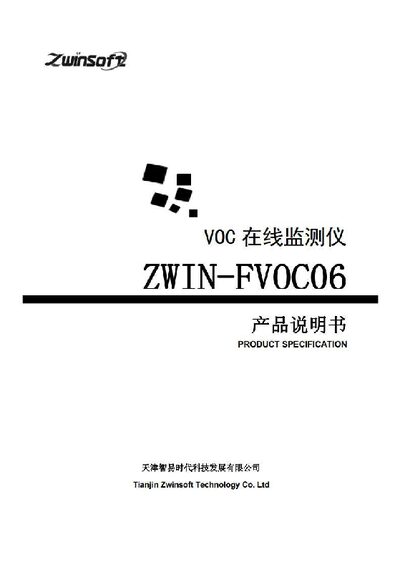

The Zwinsoft ZWIN-FVOC06 VOC online monitoring instrument user manual provides operation, maintenance, technical specifications and warranty information.
This manual is written for trained technical personnel and covers all essential information for safely operating the ZWIN‑FVOC06 VOC online monitoring instrument, including usage guidelines, system architecture, technical parameters, software functions, maintenance procedures and warranty details.
The document is organized into sections such as Overview, System Architecture, Component Descriptions (FID detector, zero‑air generator, hydrogen generator, gas chromatograph), Technical Specifications, Software Interface, Data Post‑Processing, Instrument Maintenance and Shutdown Procedure, providing step‑by‑step instructions and reference tables. This manual is written in Chinese.
| Monitoring capability | Methane, Non‑methane total hydrocarbons |
|---|---|
| Methane range | 0.1‑10000 ppm (v/v) |
| Non‑methane total hydrocarbons range | 0.04‑10000 ppm (v/v) |
| Detector type | High‑sensitivity Hydrogen Flame Ionization Detector (FID) |
| Detection limit (Methane) | ≤ 0.1 ppm (v/v) |
| Detection limit (Non‑methane) | ≤ 0.04 ppm (v/v) |
| Power supply voltage | 220 V 50 Hz |
| Maximum power | 150 W / 180 W |
| Operating temperature | 0‑40 °C |
| Relative humidity limit | < 85 % |
| Gas purity | 99.999 % (relative O₂ content) |
| Output flow (ZQHF‑300) | 0‑300 ml/min |
| Output flow (ZQHF‑500) | 0‑500 ml/min |
| Output pressure | 0.4 MPa |
| Dimensions | 5U |
| Weight (ZQHF‑300) | ≈ 12 kg |
| Weight (ZQHF‑500) | ≈ 13 kg |
Select “System → Restore factory settings” to revert all user configurations to the default state.
