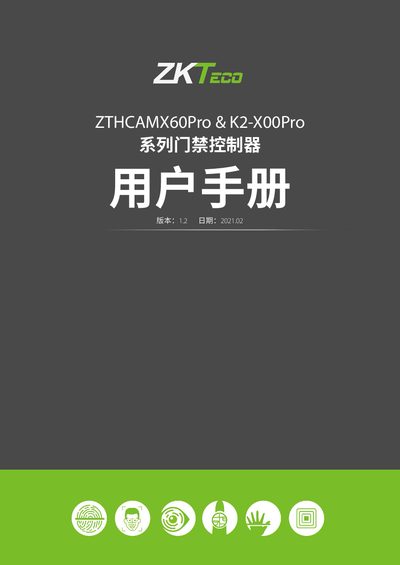

User manual for ZTHCAM ZTHCAMX60Pro and K2‑X00Pro series access control controllers, covering installation, wiring, operation and communication.
This manual provides detailed instructions for installing, wiring and operating the ZTHCAM ZTHCAMX60Pro & K2‑X00Pro series access control controllers. It includes safety guidelines, system overview, controller terminal descriptions, and step‑by‑step usage procedures.
The document also covers communication options such as TCP/IP, RS485 and Wiegand, wiring recommendations, power supply requirements, and troubleshooting tips for reliable operation in various environments. This manual is written in Chinese.
| Working power supply voltage | 12 V ± 20 % DC |
|---|---|
| Rated current | ≤ 0.5 A |
| Operating temperature range | -20 °C ~ 55 °C |
| Operating humidity range | 10 % ~ 80 % |
| Lock relay output voltage | 36 V DC |
| Lock relay output current | 5 A |
| Auxiliary relay output voltage | 36 V DC |
| Auxiliary relay output current | 2 A |
| Controller dimensions (160/260 Pro models) | 182 mm × 123.7 mm × 31.3 mm |
| Controller dimensions (460 Pro model) | 223 mm × 123.7 mm × 31.3 mm |
The controller requires a 12 V ± 20 % DC power supply.
