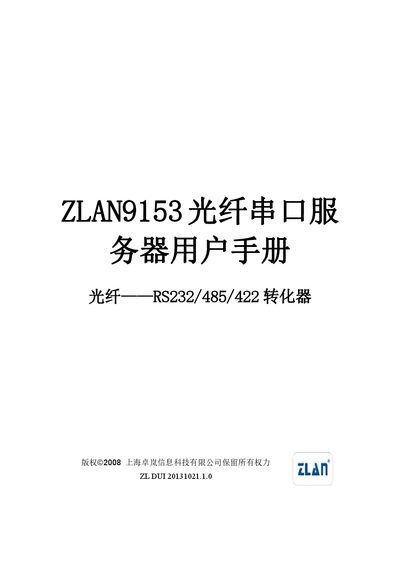

User manual for the ZLAN9153 fiber‑optic serial server, detailing features, specifications and setup instructions.
The ZLAN9153 fiber‑optic serial server, developed by Shanghai Zhuolan Information Technology Co., provides transparent RS232/RS485/RS422 data transmission over single‑mode SC fiber. It supports full‑duplex, high‑speed data forwarding, TCP/UDP communication, and includes a built‑in web server for configuration.
The device is available in two sub‑models (ZLAN9153‑3 A‑end and ZLAN9153‑5 B‑end) that must be paired oppositely for link mode. It can be used singly with a fiber‑to‑Ethernet converter or in a paired configuration to extend serial links up to 20 km. Configuration is performed via the free ZLVircom Windows tool, either over the network or through a direct serial connection. This manual is written in Chinese.
| Interface | RS232 DB9, RS422/RS485 terminal, SC fiber plug |
|---|---|
| Power Input | 9‑24 V DC, 158 mA @ 9 V |
| Operating Temperature | -40 °C to 85 °C |
| Storage Temperature | -45 °C to 165 °C |
| Humidity Range | 5 % to 95 % RH |
| Dimensions (L×W×H) | 9.4 cm × 6.5 cm × 2.5 cm |
| Fiber Transmission Distance | 20 km |
| Baud Rate | 1200 bps – 115200 bps |
| Data Bits | 5‑9 bits |
| Parity Options | None, Odd, Even, Mark, Space |
| Flow Control | XON/XOFF, RTS/CTS, NONE |
| Sub‑model Wavelengths | ZLAN9153‑3 TX 1310 nm / RX 1550 nm; ZLAN9153‑5 TX 1550 nm / RX 1310 nm |
The ZLAN9153 comes in sub‑models ZLAN9153‑3 (A‑end) and ZLAN9153‑5 (B‑end); when used in link mode they must be paired opposite (A to B).
Install the free ZLVircom Windows tool and use its serial‑port search function to find and configure the device directly via RS232/RS485/RS422.
The device supports up to 20 km of fiber transmission distance.
