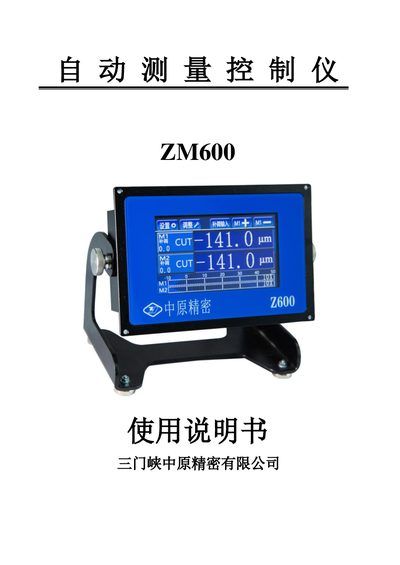

The ZM600 user manual from Zhongyuan Precision provides safety guidelines, product features, interface details, I/O connections, and step‑by‑step operation…
This manual begins with essential safety precautions, warning users about internal electricity, the danger of removing the enclosure, and the need to disconnect power before any maintenance. It also stresses keeping hands away from moving measurement devices and proper grounding of the instrument.
The document then describes the instrument’s features, including a 4.3‑inch TFT touch LCD, tempered‑glass panel, and various extended functions such as external compensation, memory selection, and RS‑485 output. Detailed sections cover the measurement, setting, and adjustment interfaces, as well as I/O connections and usage procedures for different sensor types. This manual is written in Chinese.
| Operating temperature range | 0–40 °C |
|---|---|
| Maximum humidity | Below 90 % |
| Maximum vibration | Below 0.1 g |
| Panel material | Tempered glass |
| Display | 4.3‑inch TFT touch LCD |
| Compensation range | ±60 µm |
| Adjustment tolerance | ±30 |
| Digital interface | BCD/Binary |
| Sensor input | Standard dual‑channel sensor |
Users must avoid touching internal electricity, never remove the enclosure except by qualified personnel, disconnect power before opening the case, keep hands away from moving measurement devices, and ensure proper grounding of the power and control lines.
The instrument can operate in temperatures from 0 °C to 40 °C, with humidity below 90 % and vibration levels under 0.1 g.
Press the +/- buttons to increase or decrease the compensation value, or directly input the desired offset (e.g., “‑1”) to set the compensation within the ±60 µm range.
