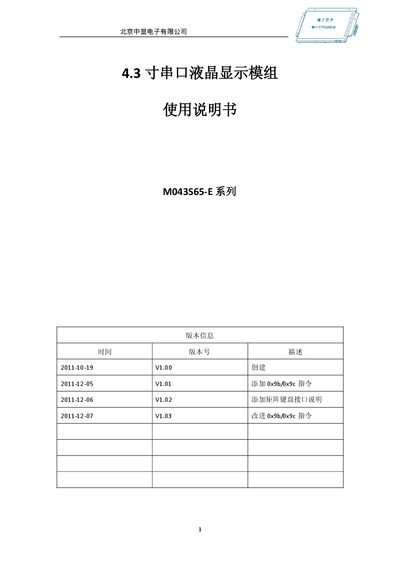

User manual for the 4.3" serial LCD display module M043S65‑E by 中显信息科技, covering features, interfaces and command set.
This manual describes the 4.3‑inch serial LCD display module developed by 中显信息科技. It includes an overview of the product, main features, ordering options, physical dimensions, interface specifications, and a detailed command set for developers.
The document also provides information on optional accessories such as a 4×4 matrix keypad, backlight control, and flash storage, as well as special notes on serial communication settings and command formatting. This manual is written in Chinese.
| Color depth | 65536 colors (RGB565) |
|---|---|
| Resolution | 480 × 272 pixels |
| Interface | 232 serial / TTL serial |
| Power supply | 5 V DC |
| Flash storage capacity | Up to 374 images (≤480×272) |
| Keypad | 4×4 matrix keypad optional |
| Backlight control | Integrated backlight switch |
The display supports 65 536 colors using the RGB565 format.
It uses a 232 serial or TTL serial interface.
Yes, it has built‑in flash memory that can store up to 374 images of up to 480×272 resolution.
