Zhongchuang ET430/ET431/ET432/ET433 Handheld LCR Meter User Manual

User manual for the Zhongchuang ET430‑ET433 handheld LCR meter, covering safety, operation, specifications and maintenance.

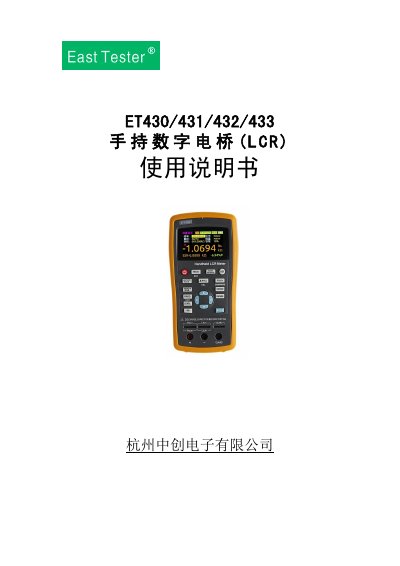

Zhongchuang ET430/ET431/ET432/ET433 Handheld LCR Meter User Manual - cover page
Brand
Zhongchuang
Category
Other Electronics
Document type
User Manual
Language
Chinese
Pages
31
File format
PDF
File size
1 MB
Published
01 October, 2026
Updated
01 October, 2026
MD5 checksum
3F02DF19602C8486DEF4FA93AE1EE5B3
PDF
Zhongchuang ET430/ET431/ET432/ET433 Handheld LCR Meter User Manual PDF

About this manual

The ET43 series handheld LCR meter from Zhongchuang is a portable instrument for measuring resistance, capacitance, inductance and impedance. It runs on a 5 V, 2600 mAh Li‑ion battery or via a Mini‑USB power adapter and features a 2.8‑inch TFT LCD display.

The manual provides safety guidelines, a detailed front‑panel overview, step‑by‑step operation instructions, quick‑application examples, remote communication via Mini‑USB, full specification tables and maintenance procedures. This manual is written in Chinese.

What's inside

  • Safety Guidelines
  • Product Overview
  • Front Panel Overview
  • Operation Guide
  • Quick Application Guide
  • Remote Communication
  • Instrument Parameters
  • Maintenance

Specifications

Maximum measurement frequency100 kHz
Battery5 V, 2600 mAh Li‑ion
Display2.8‑inch TFT LCD
Resolution4½‑digit main, 0.0001‑digit secondary
Download PDF (1 MB)
