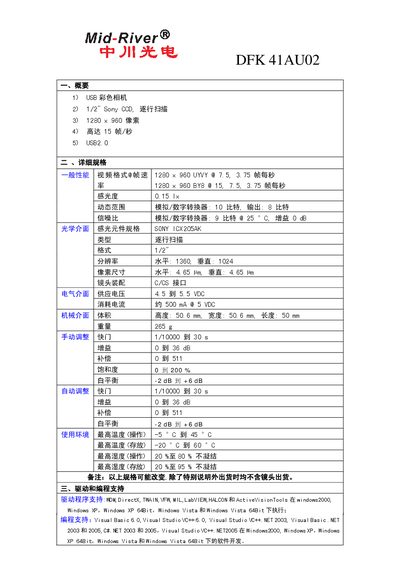

The DFK 41AU02 USB color camera datasheet provides sensor, resolution, interface, power and driver information.
The DFK 41AU02 is a USB‑connected color camera featuring a 1/2" Sony CCD sensor with progressive scan and a maximum resolution of 1280 × 960 pixels. It supports up to 15 fps and offers a USB 2.0 interface powered by 4.5‑5.5 VDC.
The document lists detailed electrical and mechanical specifications, environmental limits, and the supported drivers and programming environments for Windows platforms, including Visual Basic, C++, and C# development tools. This manual is written in Chinese.
| Sensor type | Sony ICX205AK |
|---|---|
| Resolution | 1280 × 960 pixels |
| Maximum frame rate | 15 fps |
| Dimensions (H × W × L) | 50.6 mm × 50.6 mm × 50 mm |
| Weight | 265 g |
| Operating temperature range | -5 °C to 45 °C |
The camera can capture up to 15 frames per second.
Drivers run on Windows 2000, Windows XP (including 64‑bit), and Windows Vista (including 64‑bit).
Supported environments include Visual Basic 6.0, Visual Studio C++ 6.0, VC++.NET 2003/2005, Visual Basic .NET 2003/2005, and C# .NET 2003/2005.
