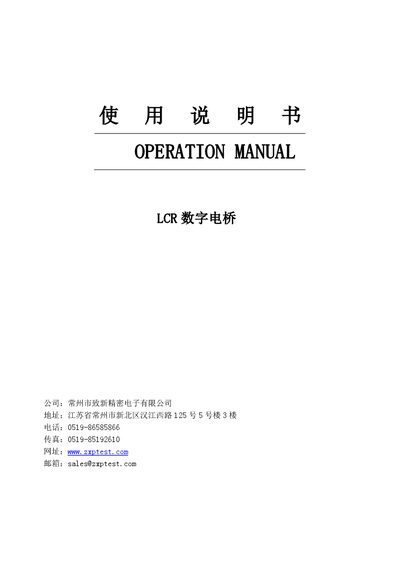

Operation manual for ZhiXin LCR digital bridge instruments covering setup, operation, specifications and interface options.
This manual provides detailed instructions for inspecting, preparing, and safely operating ZhiXin LCR digital bridge instruments. It includes guidance on power requirements, environmental conditions, and the use of test fixtures.
The document also describes the instrument’s front‑panel functions, measurement capabilities, performance specifications, keyboard operation, system settings, remote control interfaces (RS‑232, GPIB, USB, LAN, Handler) and special testing procedures for transformers and other components. This manual is written in Chinese.
| Frequency range | 1 Hz – 5 MHz (depending on model) |
|---|---|
| Basic accuracy | 0.05 % (0.1 % for some models) |
| Test speed | Fast 50 samples/s, Medium 20 samples/s, Slow 6 samples/s |
| Dimensions (W×H×D) | 400 mm × 132 mm × 300 mm |
| Weight | 8.5 kg |
The instrument should be powered on for at least 12 minutes before measuring.
The basic accuracy is 0.05 % (0.1 % for some models).
Available interfaces include RS‑232C, GPIB (optional), USB‑TMC, USB‑CDC, LAN (optional), and Handler.
