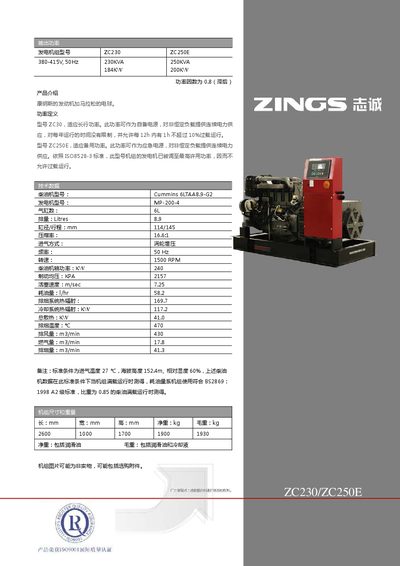

Technical data, dimensions, and configuration options for the Zhicheng Cummins ZC230 and ZC250E diesel generator sets.
The Zhicheng Cummins ZC230 and ZC250E are diesel generator sets designed for continuous power supply in standby or emergency applications. They feature Cummins 6LTAA8.9‑G2 engines, MP‑200‑4 generators, and meet ISO8528‑3 standards.
The leaflets provide detailed specifications such as output power, fuel consumption, dimensions, weight, and optional accessories like silencers, cooling systems, and control panels. Electrical design complies with BS 5000‑99, IEC 60034‑1, and other international standards. This manual is written in Chinese.
| Output Power (ZC230) | 230 kVA / 184 kW |
|---|---|
| Output Power (ZC250E) | 250 kVA / 200 kW |
| Engine Model | Cummins 6LTAA8.9‑G2 |
| Generator Model | MP‑200‑4 |
| Displacement | 8.9 L |
| Compression Ratio | 16.6:1 |
| Turbocharged | Yes |
| Frequency | 50 Hz |
| Speed | 1500 RPM |
| Engine Shaft Power | 240 kW |
| Fuel Consumption (full load) | 58.2 L/h |
| Exhaust Temperature | 470 °C |
| Exhaust Flow | 41.3 m³/min |
| Cooling System Heat Radiation | 117.2 kW |
| Total Heat Dissipation | 41.0 kW |
The ZC230 model is rated at 230 kVA (184 kW).
It uses a Cummins 6LTAA8.9‑G2 diesel engine.
Fuel consumption at full load is 58.2 L per hour.
