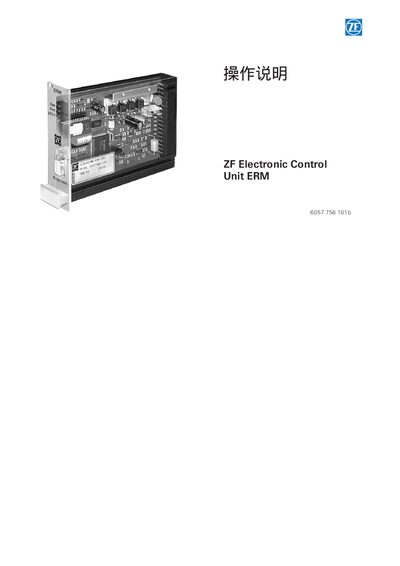

ZF 6057 758 101 Electronic Control Unit Service Manual

About this manual

This manual covers the ZF Electronic Control Unit ERM model 6057 758 101. It includes safety instructions, detailed technical data, operating mode definitions, and procedures for identifying failures.

The document also lists LED indicators for fault diagnosis, pin assignments, and current limits (Imax/Imin), helping technicians install, operate, and service the unit safely. This manual is written in Chinese.

What's inside

• Safety Instructions
• Technical Data
• Operating Modes
• Failure Identification
• Pin Assignments
