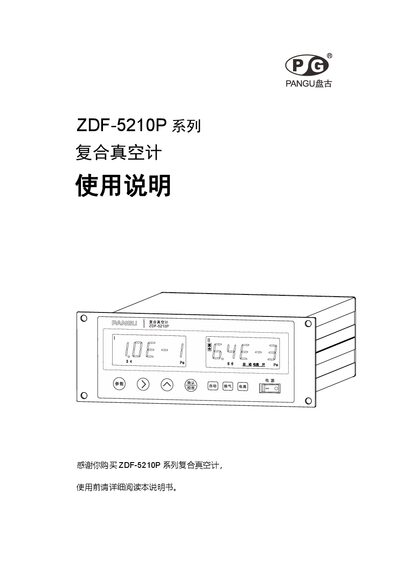

User manual for the ZDF-5210P series composite vacuum gauge, covering operation, specifications, connections and communication settings.
The ZDF-5210P series composite vacuum gauge combines a resistance unit and a hot‑cathode ionization unit to measure vacuum from high vacuum to atmospheric pressure. The manual provides detailed instructions on installation, front‑panel operation, button functions, and safety precautions.
It also describes the various model configurations (‑2 and ‑3), wiring of output terminals, relay and analog signals, and the serial communication options (RS‑232/RS‑485 with Modbus‑RTU). Calibration procedures for both resistance and ionization units are included. This manual is written in Chinese.
| Power supply | 220VAC/50Hz |
|---|---|
| Rated power | 35W |
| Fuse | 5A slow‑blow |
| Operating temperature | -10~40 °C |
| Relay output channels | Up to 4 |
| Relay load rating | 3A/220VAC (non‑inductive) |
| Instrument weight | ≈2 kg |
| Resistance unit range | 2.5×10³ Pa – 5.0×10⁻¹ Pa |
| Ionization unit range | 1.0×10⁻⁴ Pa – 5.0×10⁻⁴ Pa |
In measurement mode, long‑press the “Parameter” key for about 5 seconds to enter setting mode, then set the address, baud rate, stop bits and parity as needed.
The gauge operates from a 220 VAC, 50 Hz power source.
The device provides up to four relay contact outputs.
