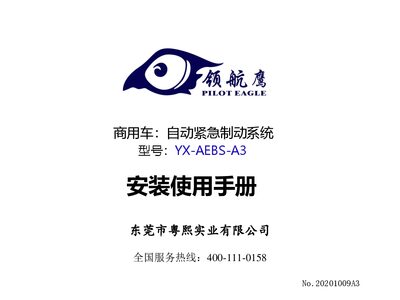

The Yuexi YX-AEBS-A3 Automatic Emergency Braking System Installation and User Manual provides setup steps, specifications, and operation guidelines.
The YX‑AEBS‑A3 is an automatic emergency braking system for commercial vehicles that assists the driver by detecting obstacles and applying brake pressure when a collision risk is identified. It operates within a speed range of 15‑105 km/h and offers adjustable braking distance and force.
This manual covers safety warnings, product specifications, component descriptions, detailed installation procedures for the camera, millimeter‑wave radar and digital control valve, wiring diagrams, usage instructions, display functions, and warranty information. This manual is written in Chinese.
| Radar frequency | 77 GHz |
|---|---|
| Radar angle (near/far) | 90°, 8° |
| Radar protection rating | IP67 |
| Camera field of view | 60° |
| Camera protection rating | IP65 |
| Digital control valve channels | 2 |
| Control valve response time | 100 ms |
| Operating voltage | DC 24 V |
| Power consumption | 5000 mA @ 12 V |
| Operating temperature range | -30 °C ~ 75 °C |
The system’s auxiliary braking function activates when the vehicle speed is between 15 km/h and 105 km/h.
The camera must be mounted on the windshield’s central area, within ±15 cm of the center point.
